Description

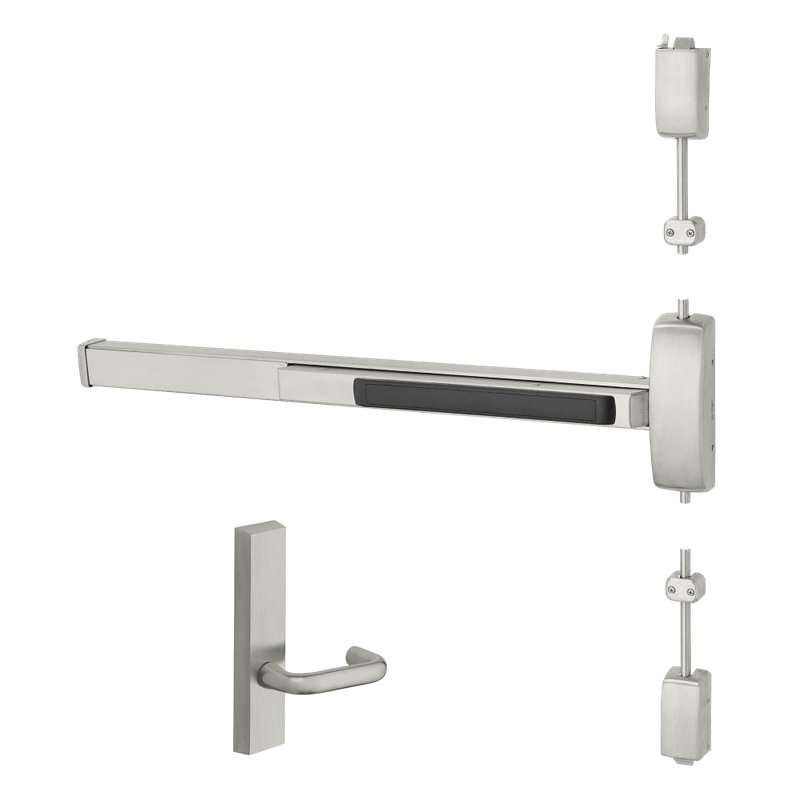

Sargent 12-8715-J-ETJ-96 Fire Rated Surface Vertical Rod Exit Device, Passage Function, ET Control, J Lever, 37-42 Inch Door, 96 Inch Door Height, Less Dogging
The Sargent 12-8715-J-ETJ-96 is a fire-rated surface vertical rod exit device engineered for demanding commercial openings up to 42 inches wide and 96 inches tall. Configured for passage function with the ET trim and J lever, it provides free ingress and egress without locking, making it ideal for high-traffic corridors and labeled fire doors. As part of Sargent's heavy-duty 80 Series, this device delivers reliable panic hardware performance with surface-mounted top and bottom rods that secure the door at two points. The less dogging specification keeps the latches fully operational at all times, meeting fire door code requirements where mechanical hold-open is prohibited.
Features
- Fire-rated surface vertical rod design secures the door at the top and bottom for added strength and labeled opening compliance.
- Passage function allows free operation from both sides with no locking mechanism.
- ET escutcheon trim paired with the J lever offers a durable, comfortable grip for everyday use.
- Sized to fit wide doors measuring 37 to 42 inches and tall openings up to 96 inches.
- Less dogging configuration keeps latches active continuously, as required on fire doors.
- Heavy-duty construction built for Grade 1 commercial and institutional applications.
Functional Details
The passage (exit only / free egress) function lets the door open from either side at all times without engaging a lock. Depressing the push rail or operating the outside lever retracts the top and bottom latch bolts, allowing immediate passage.
- Passage function - latch bolts retract by lever from outside and push rail from inside at all times; no locking.
Arm Type Details
This unit uses surface-mounted vertical rods that extend to the head and sill of the frame. When the exit device is activated, both the top and bottom latch bolts retract simultaneously, releasing the door at two points for secure yet smooth operation.
Included Components
The device ships with the surface vertical rod exit device chassis, top and bottom latch assemblies, ET escutcheon trim, and the J lever handle.
Product Specifications
| Manufacturer | Sargent |
| SKU | 12-8715-J-ETJ-96 |
| Device Type | Surface Vertical Rod Exit Device |
| Function | Passage (Exit Only) |
| Trim | ET Trim with J Lever |
| Grade | ANSI/BHMA Grade 1 |
| Fire Rating | Fire Rated |
| Dogging | Less Dogging |
| Origin | Made in USA |
| Unit of Measure | Each |
| Limited Warranty | Yes |
Technical Specifications
| Door Width Range | 37 to 42 inches |
| Door Height | Up to 96 inches |
| Device Series | 80 Series (8700) |
| Mounting | Surface Mounted |
| Latch Points | Top and Bottom |
| ANSI Standard | ANSI/BHMA A156.3 |
| UL Listing | UL/ULC Fire Exit Hardware |
| Door Type | Wood or Metal |
| Handing | Non-Handed |
| Lever Style | J Lever |
