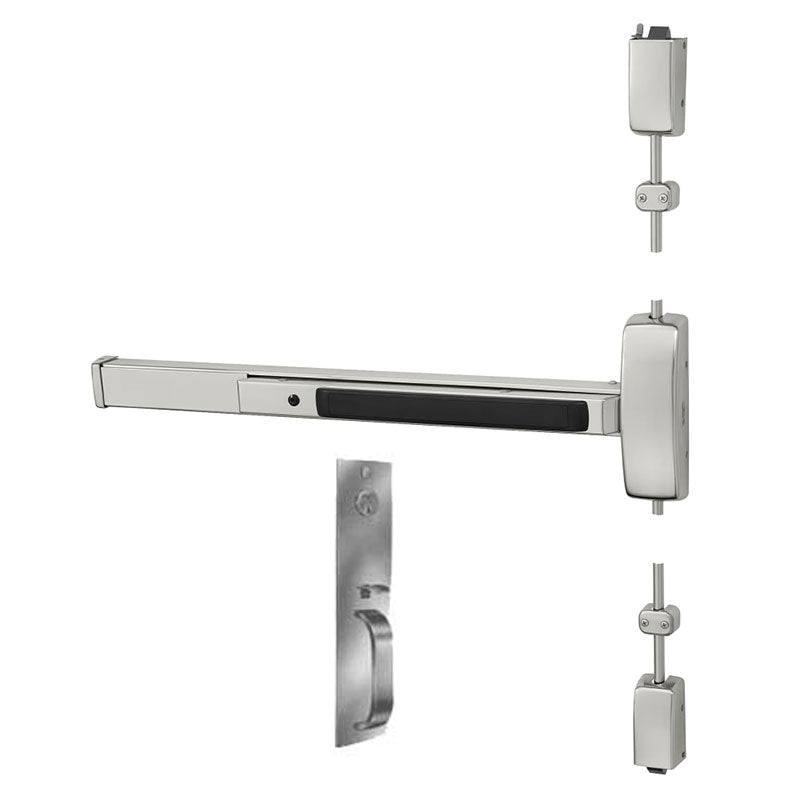

Sargent 12-8763-G-PTB-US32D Surface Vertical Rod Exit Device
Sargent 12-8763-G-PTB-US32D Surface Vertical Rod Exit Device
Sargent 12-8763-G-PTB-US10B Surface Vertical Rod Exit Device
All SARGENT Products

Sargent 12-8763-G-PTB-96 Fire Rated Surface Vertical Rod Exit Device, PTB Trim, Key Locks Or Unlocks Thumb Piece, 96" Dr Height, 43"-48" Dr Widths

  • SKU: 128763GPTB96US32DLHR
  • ✓
    Available (1‑2 Weeks)
    1-2 Weeks Lead Time
Your Price
$2,078.07/ea
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse
Core Option: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock

The Sargent 12-8763-G-PTB-96 is a 48" Fire Rated Surface Vertical Rod Exit Device in Classroom Function for 43" - 48" Door Width, with 96" Door Heights, and features a PTB trim where the Key Locks Or Unlocks with the Thumb Piece.

63 Classroom PTB Trim
Key Outside Unlocks/Locks Thumbpiece


The 12-8763 Is a Commercial Grade One Surface Vertical Rod Panic Device, Two-point latching (top & bottom with adjustability through the center case) Standard bottom latch compatible with latch track thresholds (by others) Single and double door applications. Devices are ANSI A156.3 - Grade 1, Hex key dogging standard on non-fired rated devices; specify 16- for cylinder dogging.

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No
Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Classroom
Device Length 48"
Hand Left Hand Reverse or Right Hand Reverse
Dogging Options Less Dogging
Top Strike 646
Strike Bottom 655
Includes Trim No
Trim Type PTB
Includes Cylinder(s) Optional
Minimum Stile Size 3 1/2"
Door Material Metal or Wood
Door Width 43" to 48"
Door Height 96"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated Yes
Reversible No
Product Type Surface Vertical Rod Exit Devices
