Description

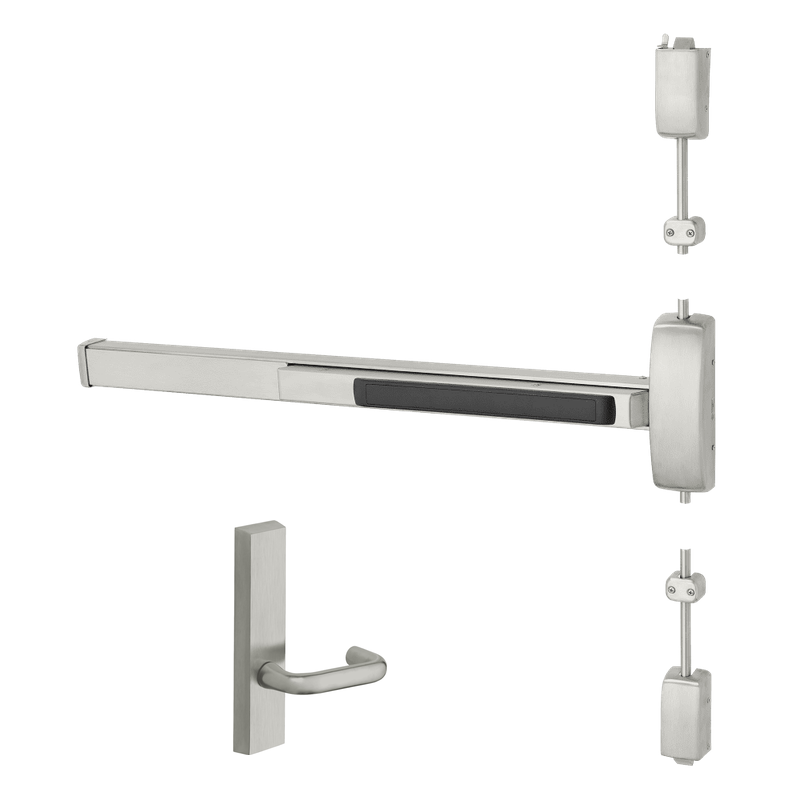

Sargent 12-8773-F-ETJ-84-12V Fire Rated Surface Vertical Rod Exit Device, Electrified Trim 12V Fail Safe, ET Control, J Lever, 33-36 In Door, 84" Door Height, Less Dogging, No Cylinder, Grade 1
The Sargent 12-8773-F-ETJ-84-12V is a heavy-duty electrified surface vertical rod exit device engineered for demanding commercial and institutional openings. Fire rated and built for doors measuring 33" to 36" wide and up to 84" in height, this device combines reliable panic egress with electrified access control. Operating on 12V DC, it is configured fail safe, meaning the ETJ lever trim unlocks on loss of power to support secure egress and emergency access requirements. Paired with the ETJ escutcheon lever trim, it delivers smooth exterior operation and durable performance in high-traffic environments where life safety and controlled entry both matter.
Features
- Electrified surface-mounted vertical rod exit device from Sargent's 80 Series line.
- Fire rated construction suitable for labeled door and frame assemblies.
- Fail safe operation unlocks the outside trim when power is removed.
- Sized for doors 33" to 36" wide and 84" in height.
- Operates on 12V DC for integration with access control systems.
- ETJ escutcheon lever trim provides comfortable, ADA-friendly exterior operation.
- Field-adjustable top and bottom rods for secure two-point latching.
Functional Details
No Cylinder. 73 Function: Electrified ET Trim - Fail Safe. Power off unlocks the lever; no cylinder is included.
The 12V electrified ETJ trim controls access from the exterior. In the fail safe configuration, removing power unlocks the lever trim, allowing entry during a power loss, while free egress from the interior is always maintained by depressing the push bar.
- Fail safe (12): outside trim is unlocked when de-energized.
- Free egress is maintained at all times from the inside.
- Energized trim is locked, requiring a valid credential or signal to unlock.
Included Components
The device ships with the surface vertical rod exit mechanism, top and bottom latch rods, strikes, and the ETJ escutcheon lever trim with mounting hardware.
Product Specifications
| Manufacturer | Sargent |
| SKU | 12-8773-F-ETJ-84-12V |
| Grade | ANSI/BHMA Grade 1 |
| Device Type | Surface Vertical Rod Exit Device |
| Fire Rating | Fire Rated |
| Function | Electrified, Fail Safe |
| Trim | ETJ Escutcheon Lever |
| Door Width | 33" to 36" |
| Door Height | 84" |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Fire Exit Hardware |
| ANSI Number | ANSI/BHMA A156.3 |
| Limited Warranty | Yes |
Technical Specifications
| Voltage | 12V DC |
| Electrical Configuration | Fail Safe |
| Latch Points | Two-point (top and bottom) |
| Mounting | Surface Vertical Rod |
| Maximum Door Width | 36" |
| Minimum Door Width | 33" |
| Door Height | 84" |
| Bottom Rod Latch Bolt Throw | 5/8" |
| Top Latch Throw | 3/4" |
| Trim Type | Lever Operated Escutcheon (ETJ) |
| Series | 80 Series |
