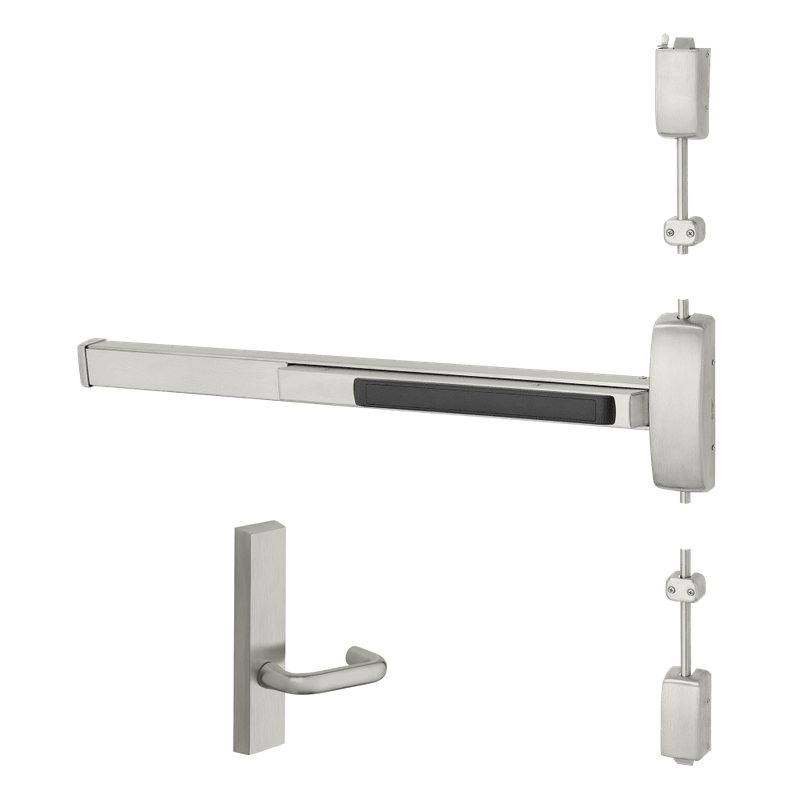

Sargent 12-8773-F-ETJ-96-24V Fire Rated Surface Vertical Rod Exit Device, Electrified Trim 24V Fail Safe, ET Control, J Lever, 33-36 In Door, 96" Door Height, Less Dogging, No Cylinder, Grade 1

The Sargent 12-8773-F-ETJ-96-24V is an electrified fire rated surface vertical rod exit device engineered for secure, code-compliant openings on tall doors up to 96 inches in height and 33–36 inches wide. Built with fail safe electrification, it unlocks the outside trim during a power loss to support safe egress and controlled access. The device pairs with the ETJ lever trim and operates on 24V, making it a reliable choice for institutional, commercial, and high-traffic applications. As a fire rated unit, it delivers dependable panic hardware performance without compromising life safety or long-term durability.

Features

• Electrified fail safe operation unlocks the outside trim when power is removed for safe egress.
• Fire rated construction suitable for labeled door and frame assemblies.
• Surface mounted vertical rod design for dependable two-point latching.
• Sized for doors measuring 33" to 36" wide and up to 96" tall.
• Operates on 24V DC for compatibility with access control systems.
• Includes ETJ lever trim for comfortable, ADA-friendly access.

Functional Details

No Cylinder. 73 Function: Electrified ET Trim - Fail Safe. Power off unlocks the lever; no cylinder is included.

The fail safe function keeps the outside trim locked while energized and releases it when power is interrupted, allowing entry during an emergency or power failure. Egress is always available from the inside through the exit device push bar.

• Fail Safe (12): Outside trim is unlocked when power is removed.
• Key outside unlocks/locks outside trim or retracts latch bolt.
• Free egress at all times from the inside.

Arm Type Details

This is a surface vertical rod configuration, using top and bottom rods that engage strikes at the head and sill of the frame. The vertical rod design distributes latching force across two points for added security and is well suited to fire rated openings.

Included Components

The device ships with the surface vertical rod exit chassis, ETJ lever trim, top and bottom latch assemblies, strikes, and mounting hardware required for installation on a 96" tall door.
