Sargent 12-8773-F-ETP-84-12V Electrified Fire Rated Surface Vertical Rod Exit Device, Fail Safe, For 33-36" Wd, 84" Ht Door

The Sargent 12-8773-F-ETP-84-12V is an electrified fire rated surface vertical rod exit device engineered for demanding commercial openings. Built on Sargent's heavy-duty 80 Series platform, it combines reliable panic exit functionality with electrified access control through the ETP electric trim. Configured as fail safe, the trim unlocks on power loss to support secure egress and controlled entry needs. Sized for 33" to 36" wide doors up to 84" in height, this 12V device carries a fire label for use on rated openings. It's a durable solution for schools, healthcare facilities, and institutional buildings that require dependable life-safety hardware paired with electronic access integration.

Features

• Electrified surface mounted vertical rod exit device suitable for fire rated door assemblies.
• Fail safe operation unlocks the outside trim when power is removed.
• Designed for doors 33" to 36" wide and up to 84" in height.
• Operates on 12 volts for compatibility with common access control systems.
• ETP electric trim provides controlled entry while allowing free egress at all times.
• Heavy-duty construction built for high-traffic commercial and institutional use.

Functional Details

The fail safe electric trim controls entry from the outside of the door. When power is applied, the outside lever trim is locked; removing power releases the trim so the door can be opened from the exterior, which supports safe egress during a power failure. The inside pushbar always allows free exit.

• Fail Safe (unlocked when de-energized)
• Latchbolt monitoring available for status indication
• Free egress at all times via the exit device pushbar

Included Components

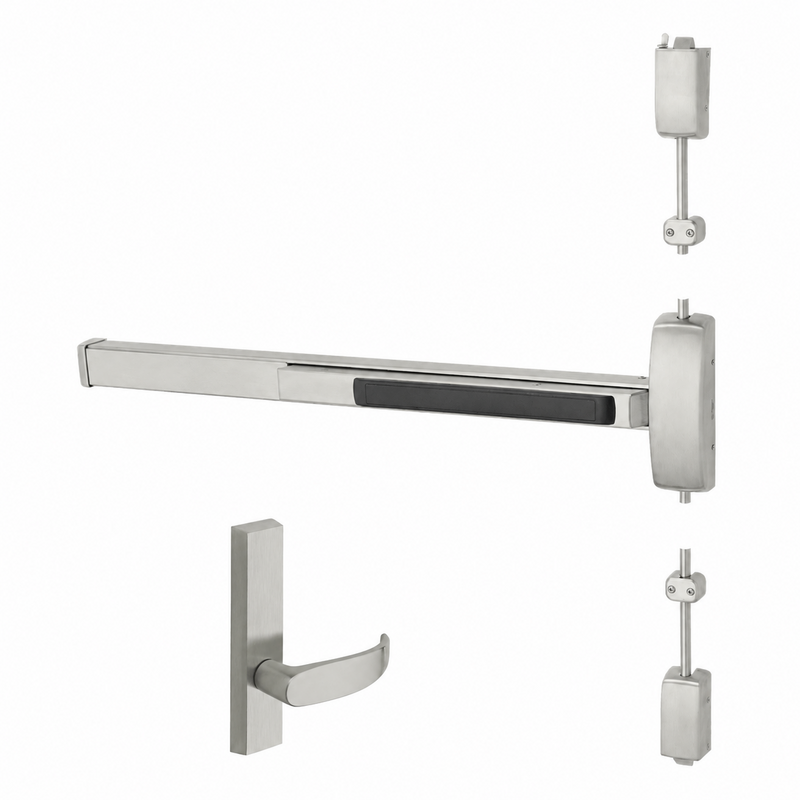

The device ships with the surface vertical rod exit chassis, top and bottom latch assemblies, vertical rods, ETP electrified lever trim, and mounting hardware for a fire rated opening.
