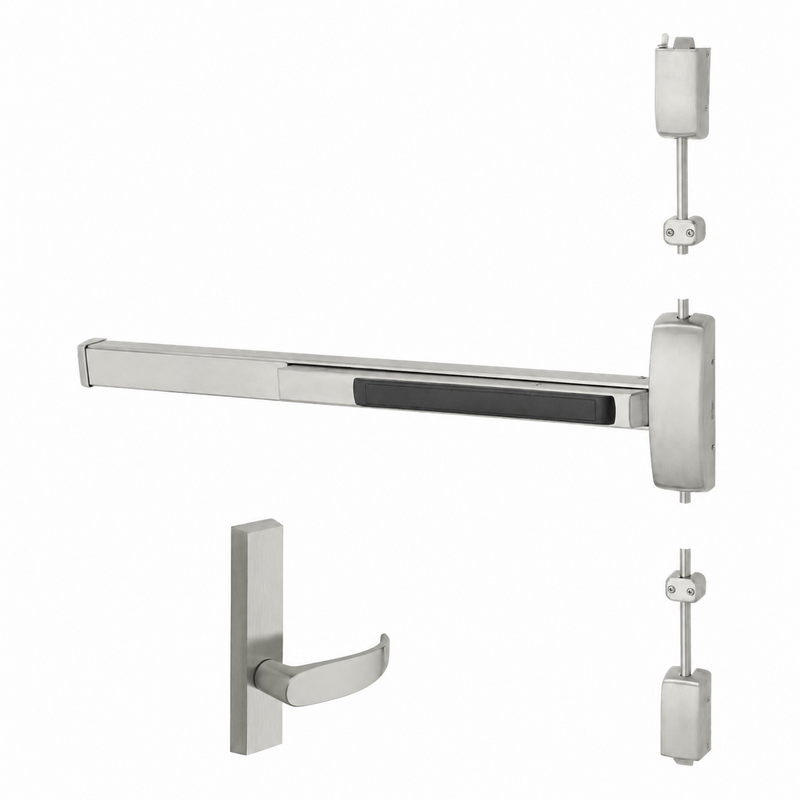

Sargent 12-8773-F-ETP-84-24V Fire Rated Surface Vertical Rod Exit Device, Electrified Trim 24V Fail Safe, ET Control, P Lever, 33-36 In Door, 84" Door Height, Less Dogging, No Cylinder, Grade 1

The Sargent 12-8773-F-ETP-84-24V is an electrified fire rated surface vertical rod exit device built for demanding commercial openings that require both life safety and controlled access. Engineered as a fail safe unit operating on 24V, it unlocks the outside trim during a power loss, making it ideal for secured egress applications where access must remain available during an emergency. This configuration fits doors measuring 33" to 36" wide and 84" tall, and pairs with the ETP lever trim for reliable everyday operation. As a fire rated device, it delivers UL-listed performance for fire door assemblies while maintaining smooth, dependable panic hardware functionality.

Features

• Electrified surface vertical rod exit device designed for fire rated door assemblies.
• Fail safe operation unlocks the outside trim when power is removed.
• Operates on 24V DC for integration with access control systems.
• Sized for doors 33" to 36" wide and up to 84" in height.
• Supplied with ETP lever trim for exterior access.
• Surface mounted design simplifies installation and service.

Functional Details

No Cylinder. 73 Function: Electrified ET Trim - Fail Safe. Power off unlocks the lever; no cylinder is included.

The fail safe electrified function controls the outside trim through applied power. When energized, the outside lever is locked and requires a credential or key; when power is interrupted, the trim releases to allow free entry, supporting fire and emergency egress requirements. Free egress from the inside is always available through the push bar regardless of power status.

• Electric latch retraction or electrified trim control for remote access.
• Fail safe: outside trim unlocks on power failure.
• Inside egress available at all times via the push rail.

Included Components

This device ships as a complete surface vertical rod exit device assembly with top and bottom rod mechanisms, mounting hardware, and the ETP electrified lever trim for the exterior side of the opening.
