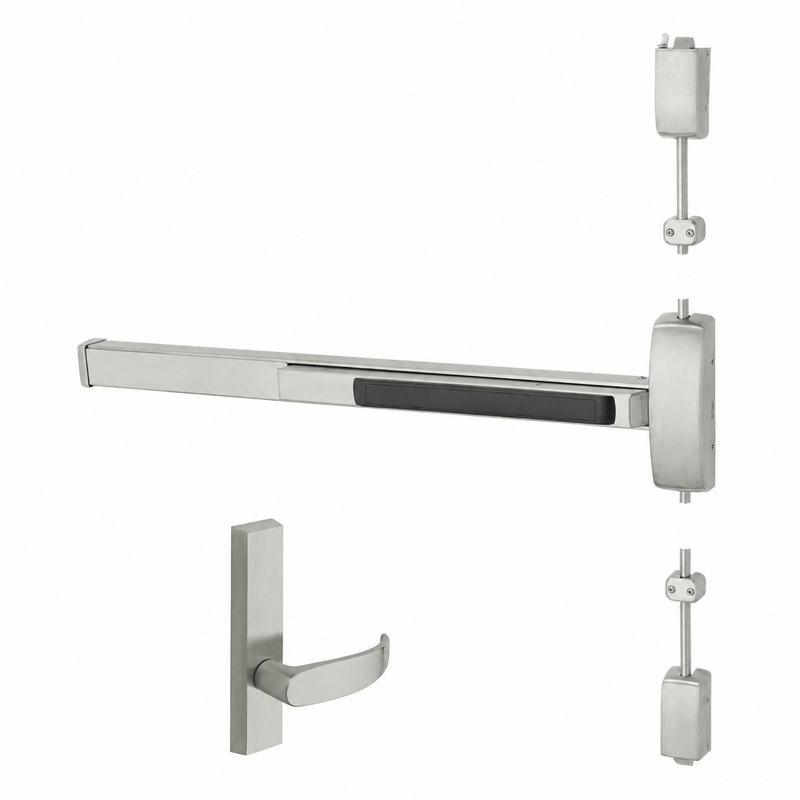

Sargent 12-8773-F-ETP-96-12V Electrified Fire Rated Surface Vertical Rod Exit Device, Fail Safe, For 33-36" Wd, 96" Ht Door

The Sargent 12-8773-F-ETP-96-12V is an electrified fire rated surface vertical rod exit device engineered for dependable security on tall commercial openings. Built for doors measuring 33 to 36 inches wide and 96 inches high, it features a fail safe electric latch retraction function that unlocks the latch when power is removed, making it ideal for controlled egress and access applications. The ETP trim provides electrified operation at 12 volts, allowing seamless integration with access control systems. As part of Sargent's 80 Series, this device combines heavy-duty construction with fire rated certification, delivering the reliability and durability expected in demanding institutional and commercial environments.

Features

• Electrified surface vertical rod exit device designed for fire rated door assemblies.
• Fail safe function unlocks the latch when power is removed for safe egress.
• Sized for doors 33 to 36 inches wide and up to 96 inches in height.
• Operates on 12V for integration with electronic access control systems.
• ETP electrified trim provides secure controlled entry.
• Heavy-duty Grade 1 construction for high-traffic installations.

Functional Details

The fail safe electric latch retraction allows the device to remain unlocked when power is interrupted, ensuring free egress and entry during a power failure. When powered, the latch stays secured until authorized access is granted through the connected control system.

• Fail Safe: Outside trim is unlocked when power is removed.
• Electric Latch Retraction (ELR) retracts the latch bolts electrically for remote and momentary access.

Arm Type Details

This unit uses a surface mounted vertical rod configuration, with top and bottom latch points that engage the frame and threshold to provide two-point locking across the full height of the door for added security and alignment stability.
