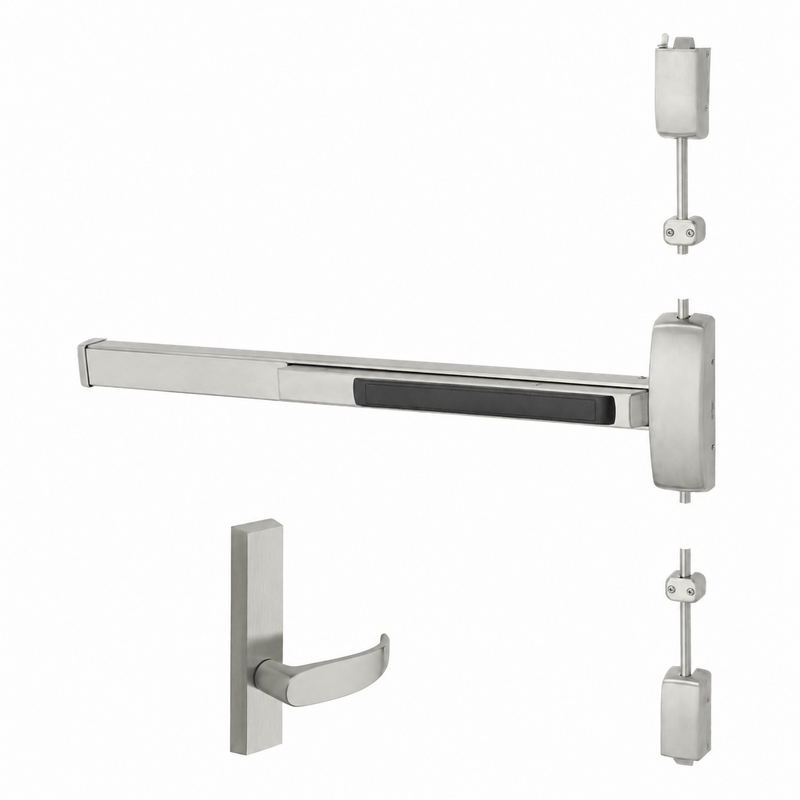

Sargent 12-8773-F-ETP-96-24V Fire Rated Surface Vertical Rod Exit Device, Electrified Trim 24V Fail Safe, ET Control, P Lever, 33-36 In Door, 96" Door Height, Less Dogging, No Cylinder, Grade 1

The Sargent 12-8773-F-ETP-96-24V is an electrified fire rated surface vertical rod exit device built for demanding commercial openings. Designed for doors 33" to 36" wide and up to 96" in height, this fail safe device uses a 24V solenoid that unlocks the outside trim during a power loss, making it ideal for access control and emergency egress applications. The ETP electrified lever trim provides controlled entry while the surface-mounted vertical rods deliver reliable top and bottom latching. As a fire rated assembly, it meets code requirements for fire door openings without the need for mechanical dogging, ensuring positive latching at all times.

Features

• Electrified fail safe operation unlocks the outside trim when power is removed.
• Fire rated construction suitable for labeled fire door openings.
• Surface-mounted vertical rod design for top and bottom latching.
• Sized for doors 33" to 36" wide with a 96" tall door application.
• ETP electrified lever trim for integrated access control.
• Operates on 24V DC for compatibility with common power supplies.
• Durable construction built for high-traffic commercial environments.

Functional Details

No Cylinder. 73 Function: Electrified ET Trim - Fail Safe. Power off unlocks the lever; no cylinder is included.

The 12-8773-F fail safe function keeps the outside trim locked while energized and releases it automatically when power is interrupted, allowing free entry during an outage or alarm condition. The interior push bar always permits free egress regardless of power status.

• Fail safe (power off unlocks outside trim).
• Free egress at all times via the push bar.
• Fire rated application with no mechanical dogging permitted.

Arm Type Details

This device uses surface-mounted vertical rods that extend to the top and bottom of the door, engaging latch points at the header and threshold. This configuration provides two-point latching for added security and proper fire door performance.

Included Components

The device ships with the surface vertical rod exit chassis, ETP electrified lever trim, top and bottom latch assemblies, and mounting hardware for installation.
