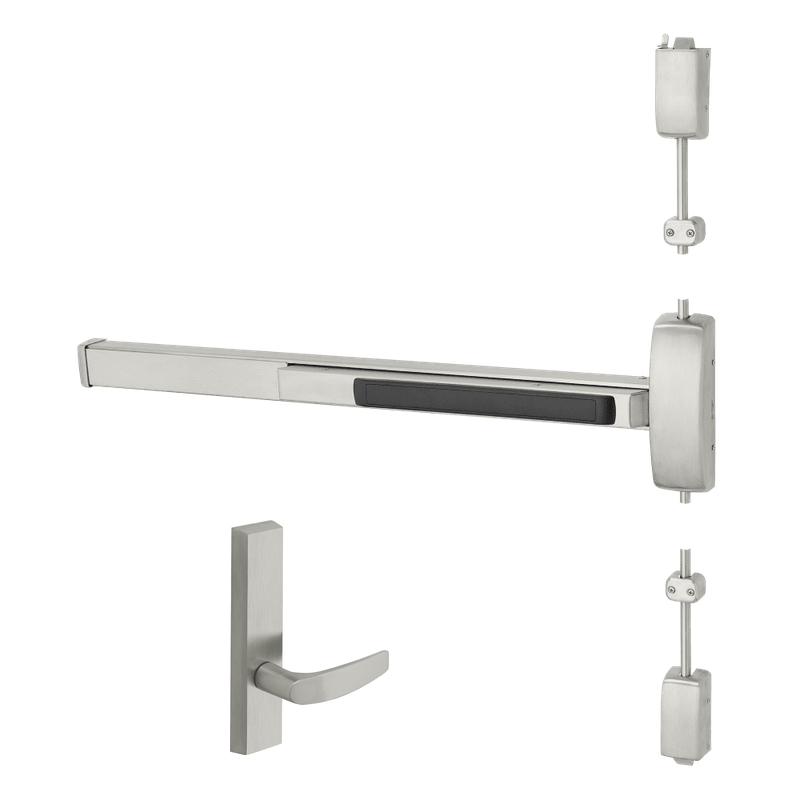

Sargent 12-8773-G-ETB-96-12V Electrified Fire Rated Surface Vertical Rod Exit Device, Fail Safe, For 43-48" Wd, 96" Ht Door

The Sargent 12-8773-G-ETB-96-12V is a heavy-duty electrified surface vertical rod exit device engineered for fire-rated openings requiring reliable access control. Built to secure doors measuring 43 to 48 inches wide and up to 96 inches in height, this device operates on 12V power and features a fail-safe configuration, meaning the device unlocks automatically during a power loss to support safe egress. Paired with the ETB trim and G lever design, it delivers smooth, dependable operation in demanding commercial settings such as schools, hospitals, and office buildings. Its fire-rated construction and Grade 1 durability make it a trusted choice for life-safety applications.

Features

• Electrified surface vertical rod exit device designed for fire-rated door assemblies.
• Fail-safe operation releases the latch during power interruption to allow free egress.
• Rated for doors 43 to 48 inches wide and up to 96 inches tall.
• Operates on 12V DC power for integration with access control systems.
• ETB escutcheon trim with the G lever design for comfortable, code-compliant use.
• Grade 1 construction built to withstand high-traffic commercial environments.

Functional Details

As a fail-safe (12) device, the electric latch retraction remains unlocked when power is removed, allowing the door to be opened from the outside during an emergency or power outage. When powered, the outside trim is secured and access is controlled electronically.

• Fail safe: outside trim is unlocked when power is removed.
• Electrified trim controls access through the outside lever.
• Exit from the inside is always free via the push rail.

Included Components

This device ships with the surface vertical rod exit mechanism, the ETB escutcheon trim with G lever, mounting hardware, and the top and bottom latch assemblies sized for a 96-inch door height.
