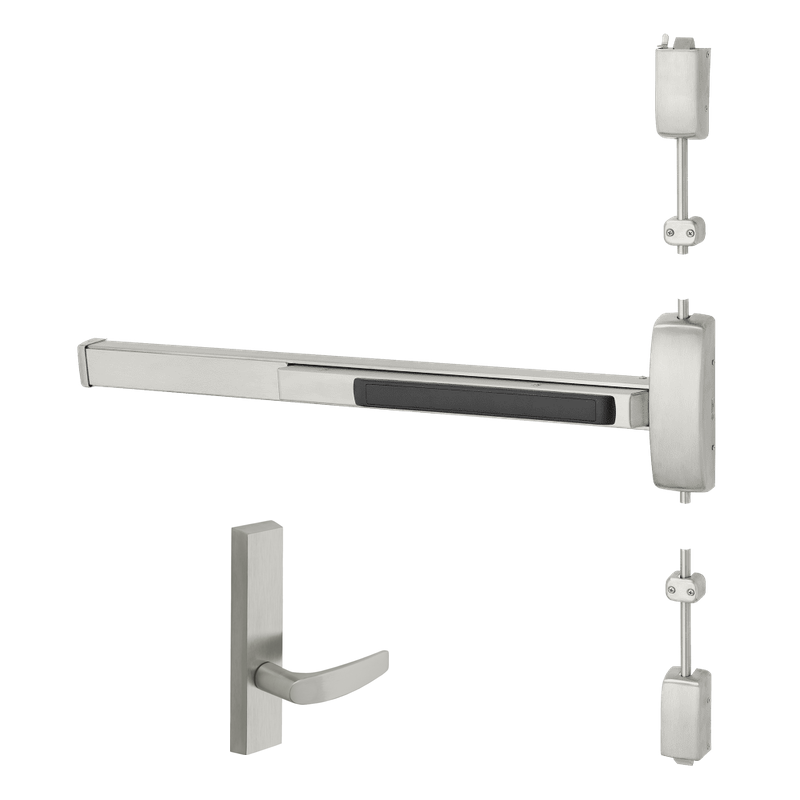

Sargent 12-8773-G-ETB-96-24V Fire Rated Surface Vertical Rod Exit Device, Electrified Trim 24V Fail Safe, ET Control, B Lever, 43-48 In Door, 96" Door Height, Less Dogging, No Cylinder, Grade 1

The Sargent 12-8773-G-ETB-96-24V is an electrified fire rated surface vertical rod exit device engineered for demanding commercial and institutional openings. Built to secure doors measuring 43-48" wide and 96" tall, this fail safe device unlocks the outside trim when power is removed, making it ideal for access-controlled openings where free egress and controlled entry are required. The G-ETB trim provides a durable lever-style pull, while the 24V electrified operation integrates seamlessly with modern access control systems. As a fire rated assembly, it delivers reliable life-safety performance without compromising everyday security or dependable code-compliant operation.

Features

• Electrified fail safe operation releases the outside trim during a power loss for secure, controlled access.
• Fire rated construction suitable for labeled fire door assemblies requiring positive latching.
• Surface-mounted vertical rod design provides dual-point latching at the top and bottom of the door.
• Sized for tall openings up to 96" in height and door widths from 43" to 48".
• Operates on 24V DC for compatibility with standard access control power supplies.
• G-ETB lever trim offers a comfortable, durable gripping surface for authorized entry.

Functional Details

No Cylinder. 73 Function: Electrified ET Trim - Fail Safe. Power off unlocks the lever; no cylinder is included.

In a fail safe configuration, the outside trim is locked when energized and unlocks when power is interrupted, allowing entry from the exterior during a power failure. The push bar always permits free egress from the inside, supporting life-safety requirements at all times.

• Fail Safe (24V): Outside trim is unlocked when power is removed.
• Continuous free egress from the inside at all times.
• Fire rated for use on labeled fire door assemblies.

Arm Type Details

This device uses a surface-mounted vertical rod mechanism, with latch points engaging the top and bottom of the door frame. The rods retract simultaneously when the push bar is actuated, releasing both latches for smooth, reliable egress.

Included Components

The device ships with the surface vertical rod exit chassis, G-ETB electrified lever trim, top and bottom latch assemblies, strikes, and mounting hardware for installation on a 96" tall door.
