Sargent 12-8773-G-ETJ-84-12V Electrified Fire Rated Surface Vertical Rod Exit Device, Fail Safe, For 43-48" Wd, 84" Ht Door

The Sargent 12-8773-G-ETJ-84-12V is an electrified fire rated surface vertical rod exit device engineered for demanding commercial openings. Built for doors measuring 43–48" wide and 84" tall, it combines dependable panic hardware performance with electrified access control. This fail safe configuration unlocks the outside trim when power is removed, making it an ideal choice for secured egress applications where safety and life-code compliance are priorities. Paired with the G-ETJ electrified night latch trim and operating on 12V, it delivers smooth, reliable operation while meeting fire door requirements. Durable construction and trusted Sargent engineering make it a solid long-term investment for schools, offices, and institutional facilities.

Features

• Surface mounted vertical rod design provides secure two-point latching at the top and bottom of the door.
• Fire rated construction suitable for labeled fire door assemblies.
• Electrified operation with the ETJ electrified lever trim for access control integration.
• Sized for 43–48" wide by 84" tall door openings.
• Operates on 12V DC for compatibility with standard low-voltage systems.
• G design trim offers a clean, contemporary appearance.

Functional Details

This device uses a fail safe electrified trim, meaning the outside lever is unlocked and allows entry when power is removed. When power is applied, the outside trim is secured, requiring a credential or key for entry while free egress is always maintained from the inside.

• Fail Safe (unlocked when de-energized) outside trim operation.
• Electric latch retraction capability for remote access control.
• Free egress at all times from the push side.

Arm Type Details

The 8773 chassis drives a surface mounted vertical rod mechanism that latches into strikes at both the head and sill of the frame. Depressing the touchbar simultaneously retracts both the top and bottom rods, allowing immediate egress.

Included Components

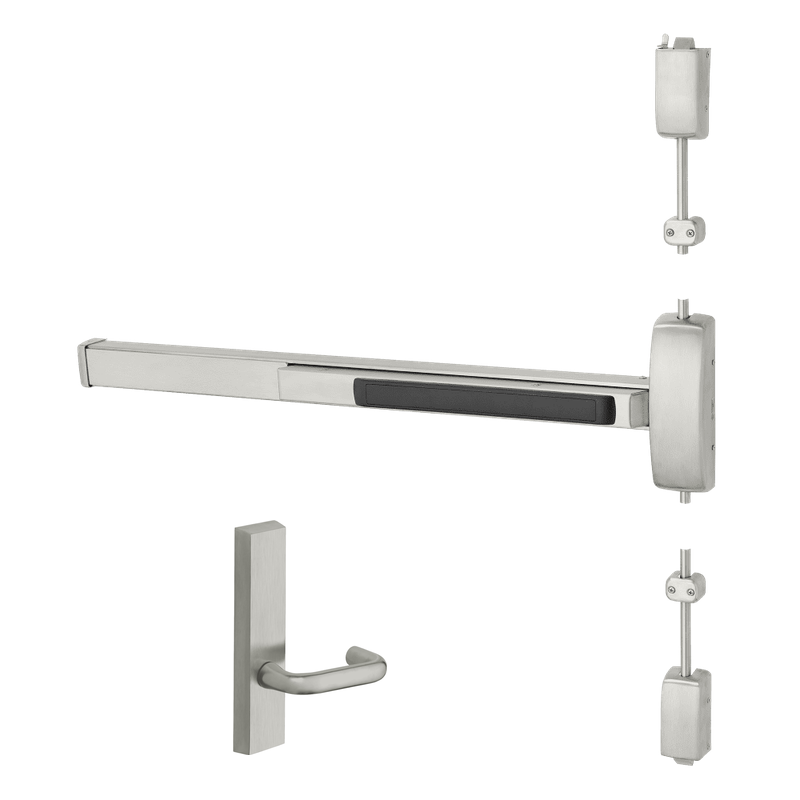

The device ships with the exit chassis, top and bottom vertical rods and latches, G-ETJ electrified lever trim, and mounting hardware for an 84" door application.
