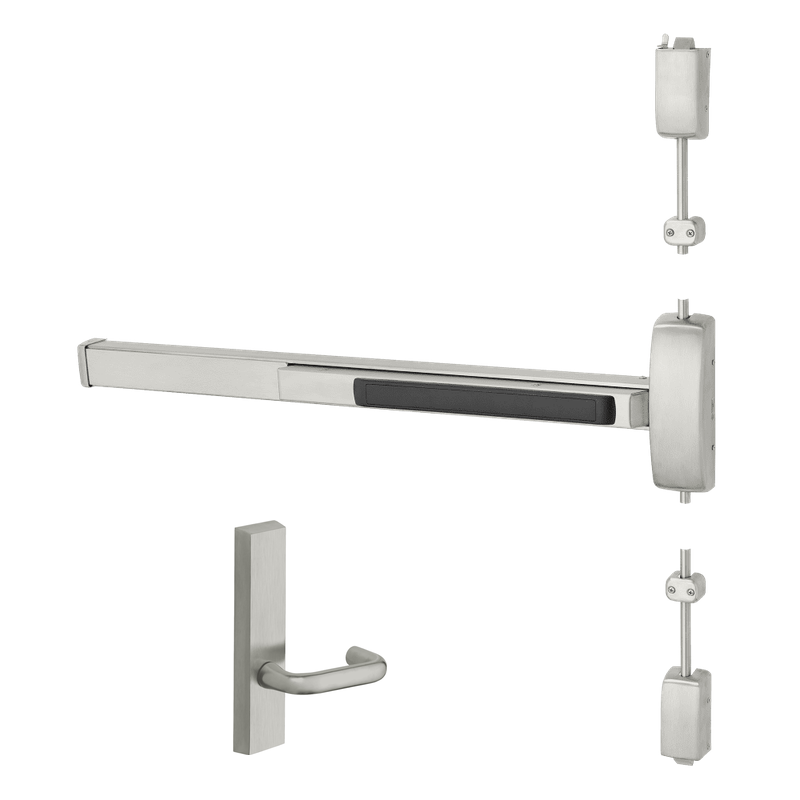

Sargent 12-8773-G-ETJ-84-24V Electrified Fire Rated Surface Vertical Rod Exit Device, Fail Safe, For 43-48" Wd, 84" Ht Door

The Sargent 12-8773-G-ETJ-84-24V is an electrified fire rated surface vertical rod exit device engineered for demanding commercial and institutional openings. Configured as fail safe, the device releases the outside trim when power is removed, allowing free access during power loss or emergency events. It fits doors measuring 43" to 48" in width and up to 84" in height, making it suitable for taller fire rated applications. Operating on 24V, the ETJ (J design lever) trim delivers reliable electrified control, while the surface-mounted vertical rod design ensures dependable latching at top and bottom. Built to Sargent's rugged 80 Series standards, it offers long-term durability and consistent performance.

Features

• Electrified fail safe operation unlocks outside trim when power is removed for secure egress and access control.
• Fire rated construction suitable for labeled door and frame assemblies.
• Surface vertical rod design provides two-point latching at the top and bottom of the door.
• Sized for 43" to 48" wide doors with heights up to 84".
• ETJ trim with the J design lever for comfortable, ADA-friendly operation.
• Operates on 24V DC for integration with access control systems.
• Heavy-duty 80 Series platform built for high-traffic environments.

Functional Details

The 8773 function provides electric latch retraction and fail safe trim control. When energized, the outside lever is locked; when power is interrupted, the trim is released to permit free entry, supporting safe egress and emergency access requirements.

• Fail Safe (unlocked when de-energized): Outside lever continuously locked except when momentarily unlocked by key.
• Key outside unlocks/locks outside lever. When unlocked, lever retracts latch.
• Inside lever always free for immediate egress.

Arm Type Details

This device uses a surface-mounted vertical rod configuration. Depressing the push rail retracts both the top and bottom latch bolts simultaneously, releasing the door while maintaining secure two-point latching when closed.

Included Components

The device ships with the surface vertical rod exit chassis, ETJ electrified lever trim, top and bottom latch assemblies, and mounting hardware for installation on a 43"-48" wide by up to 84" tall door.
