Description

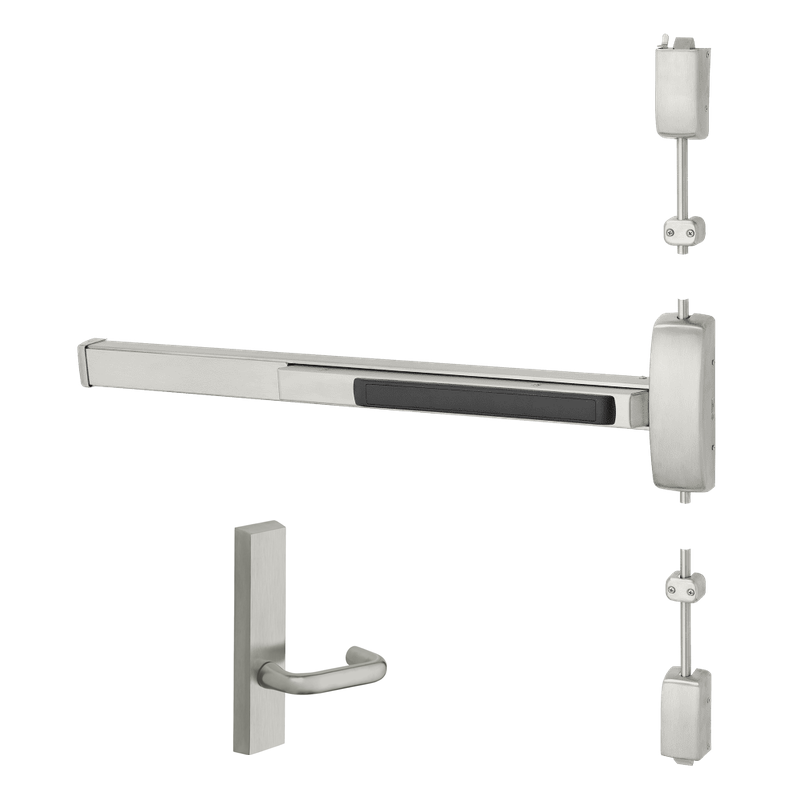

Sargent 12-8773-G-ETJ-96-24V Fire Rated Surface Vertical Rod Exit Device, Electrified Trim 24V Fail Safe, ET Control, J Lever, 43-48 In Door, 96" Door Height, Less Dogging, No Cylinder, Grade 1
The Sargent 12-8773-G-ETJ-96-24V is a heavy-duty electrified fire rated surface vertical rod exit device engineered for high-traffic commercial openings. Built for doors measuring 43-48" wide and 96" tall, this device operates in a fail safe configuration at 24V, releasing the outside trim during a power loss to support controlled egress and access control integration. It features the ETJ lever trim and comes fire rated for use on labeled openings. With Sargent's rugged construction and Grade 1 durability, this device delivers dependable performance and smooth operation in demanding institutional, healthcare, and commercial environments.
Features
- Electrified surface vertical rod exit device designed for fire rated door assemblies.
- Fail safe operation unlocks the outside trim when power is removed.
- Operates on 24V for reliable integration with access control systems.
- Sized for doors 43-48" wide and 96" in height.
- Includes the ETJ lever trim for keyed outside access.
- Grade 1 rated construction for long-lasting, high-traffic performance.
Functional Details
No Cylinder. 73 Function: Electrified ET Trim - Fail Safe. Power off unlocks the lever; no cylinder is included.
The fail safe electric latch retraction and trim control allows the device to unlock automatically during a power interruption, ensuring occupants can exit and enter freely. When energized, the outside lever trim remains secured, and when de-energized, the trim is released for free passage, making it ideal for stairwells and controlled access points.
- Fail safe: outside trim is unlocked when power is removed.
- 12- prefix designates 24V DC electrified operation.
- Outside trim is electrically controlled while the device remains fire rated and latched.
Included Components
The device ships complete with the surface mounted vertical rod mechanism, top and bottom latch assemblies, and the G (ETJ) lever design escutcheon trim for the outside of the door.
Product Specifications
| Manufacturer | Sargent |
|---|---|
| SKU | 12-8773-G-ETJ-96 |
| Device Type | Surface Vertical Rod Exit Device |
| Grade | ANSI/BHMA Grade 1 |
| Fire Rating | Fire Rated |
| Function | Fail Safe, Electrified |
| Trim | ETJ Lever (G Design) |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed for Fire Doors |
| ANSI Number | ANSI/BHMA A156.3 |
| Limited Warranty | Yes |
Technical Specifications
| Voltage | 24V DC |
|---|---|
| Door Width Range | 43" - 48" |
| Door Height | 96" |
| Mounting | Surface Mounted Vertical Rod |
| Latching Points | Top and Bottom |
| Electrical Function | Fail Safe Trim Control |
| Device Series | 8700 Series |
| Latchbolt Throw | 3/4" |
| Dogging | Not available (fire rated) |
| Handing | Left Hand Reverse or Right Hand Reverse |
