Description

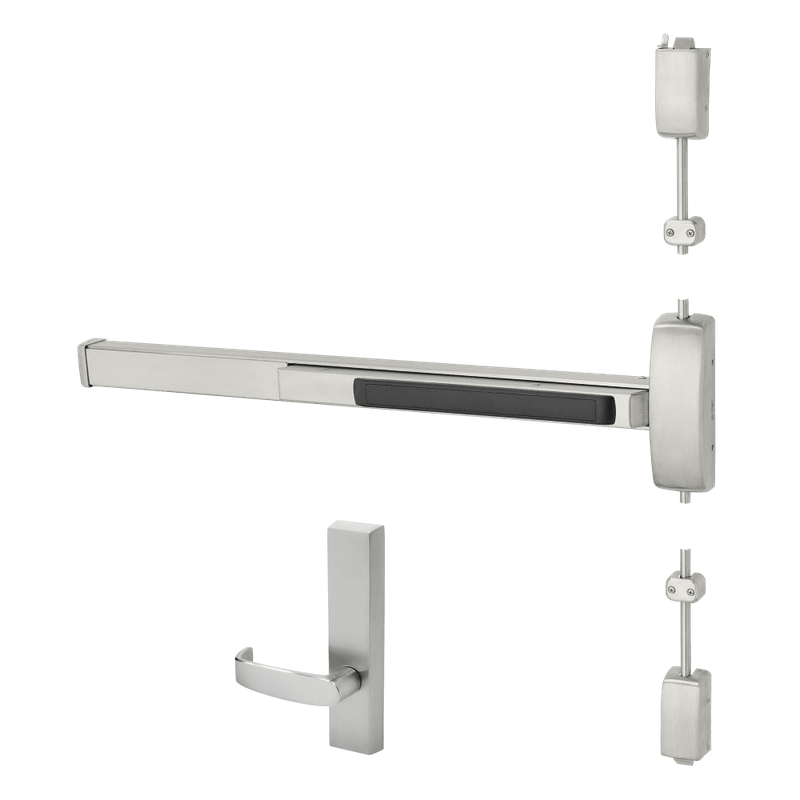

Sargent 12-8773-G-ETL-84-12V Fire Rated Surface Vertical Rod Exit Device, Electrified Trim 12V Fail Safe, ET Control, L Lever, 43-48 In Door, 84" Door Height, Less Dogging, No Cylinder, Grade 1
The Sargent 12-8773-G-ETL-84-12V is a heavy-duty electrified surface vertical rod exit device engineered for fire-rated openings up to 43-48" wide and 84" tall. Built for Grade 1 commercial performance, it combines dependable panic egress with electrified latch retraction, making it ideal for access-controlled doors in schools, hospitals, and institutional buildings. Configured as fail safe, the device releases on power loss to allow free egress, while the 12V electric latch retraction (ETL) feature works with electronic access systems. The ergonomic G-type lever trim adds a clean, functional finish. This device meets fire rating requirements and delivers long-term reliability under high-traffic conditions.
Features
- Fire-rated surface mounted vertical rod exit device for doors up to 43-48" wide and 84" high.
- Grade 1 construction built to withstand demanding commercial and institutional use.
- Electric latch retraction (ETL) allows integration with access control and automatic operators.
- Fail safe operation unlocks the device when power is removed for guaranteed egress.
- Operates on 12V power for compatibility with common low-voltage systems.
- G-style lever trim provides smooth, ADA-friendly operation.
Functional Details
No Cylinder. 73 Function: Electrified ET Trim - Fail Safe. Power off unlocks the lever; no cylinder is included.
The fail safe electric latch retraction function uses a motorized mechanism to retract the latch bolts when energized, permitting momentary or sustained free access from the outside. On loss of power, the latches release to allow unobstructed egress and entry per fire and life-safety requirements.
- Electric latch retraction for remote dogging and access control.
- Fail safe: device unlocks on power failure.
- Draws low current with inrush/holding design for continuous duty.
Included Components
The device ships complete with the surface vertical rod exit chassis, top and bottom latch assemblies, vertical rods, mounting hardware, and the G-type lever trim for the exterior.
Product Specifications
| Manufacturer | Sargent |
|---|---|
| SKU | 12-8773-G-ETL-84-12V |
| Grade | ANSI/BHMA Grade 1 |
| Origin | United States |
| Unit of Measure | Each |
| Device Type | Surface Vertical Rod Exit Device |
| Fire Rating | Fire Rated |
| Function | Electric Latch Retraction, Fail Safe |
| Trim Style | G-Type Lever |
| UL Listing Type | UL Listed for Fire Door Assemblies |
| ANSI Number | ANSI/BHMA A156.3 |
| BAA Qualified | Yes |
| Limited Warranty | Limited Warranty |
Technical Specifications
| Door Width Range | 43" to 48" |
|---|---|
| Door Height | 84" |
| Operating Voltage | 12V DC |
| Latch Retraction | Electric (Motor Driven) |
| Fail Mode | Fail Safe |
| Mounting | Surface Mounted |
| Rod Configuration | Top and Bottom Vertical Rods |
| Device Series | 80 Series (8700) |
| Latch Points | Dual (Top and Bottom) |
| Handing | Left Hand Reverse or Right Hand Reverse / Reversible |
