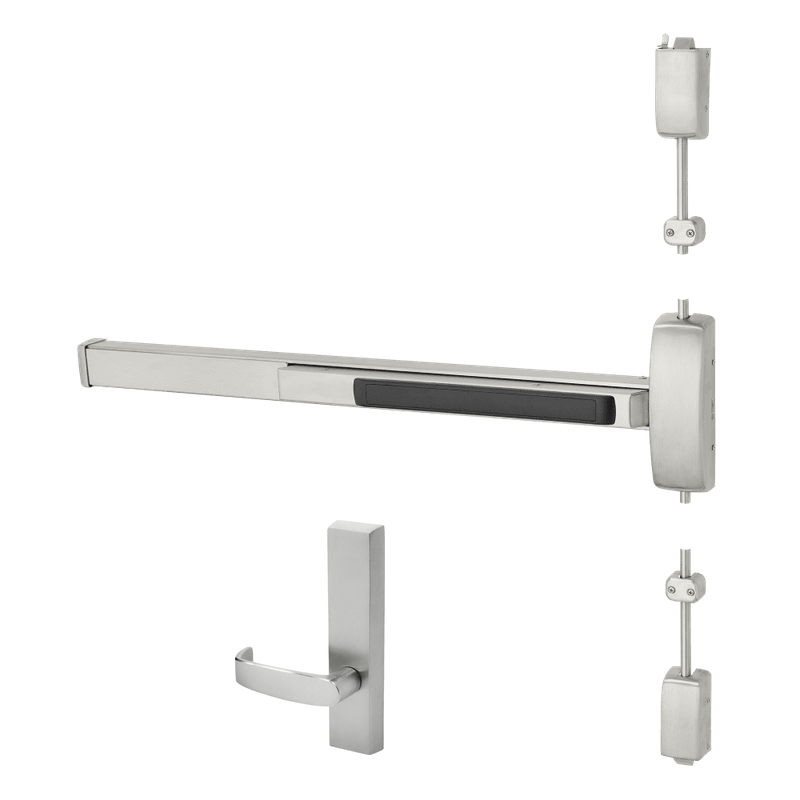

Sargent 12-8773-G-ETL-96-12V Fire Rated Surface Vertical Rod Exit Device, Electrified Trim 12V Fail Safe, ET Control, L Lever, 43-48 In Door, 96" Door Height, Less Dogging, No Cylinder, Grade 1

The Sargent 12-8773-G-ETL-96-12V is a heavy-duty electrified surface vertical rod exit device engineered for fire-rated openings in demanding commercial environments. This fail-safe model operates on 12V power, releasing the outside trim when voltage is removed, making it ideal for integration with access control and emergency egress systems. Built to fit doors measuring 43 to 48 inches wide and up to 96 inches tall, it combines reliable panic exit performance with electric latch retraction capability. As a Grade 1 device from one of the most trusted names in door hardware, it delivers consistent security, durability, and code compliance for high-traffic installations.

Features

• Electrified surface vertical rod design provides reliable panic egress on tall fire-rated doors.
• Fail-safe operation unlocks the outside trim when power is removed, supporting emergency egress requirements.
• Operates on 12V DC for easy integration with building access control systems.
• Fire-rated construction meets UL requirements for labeled door assemblies.
• Sized for doors 43 to 48 inches wide and up to 96 inches in height.
• Grade 1 ANSI/BHMA rating ensures heavy-duty performance in commercial applications.
• G (ETL) electric latch retraction trim included for controlled access functionality.

Functional Details

No Cylinder. 73 Function: Electrified ET Trim - Fail Safe. Power off unlocks the lever; no cylinder is included.

This device uses electric latch retraction to momentarily withdraw the latchbolts when energized, allowing remote and controlled entry. In its fail-safe configuration, loss of power releases the trim so the door can be opened from the outside, prioritizing access during power interruptions while maintaining free egress at all times from the inside.

• Fail-safe: outside trim unlocked when de-energized.
• 12V DC operation.
• Fire-rated for labeled openings.

Included Components

The device ships with the G (ETL) electrified trim, top and bottom vertical rod assemblies, strikes, and mounting hardware required for installation on compatible fire-rated door openings.
