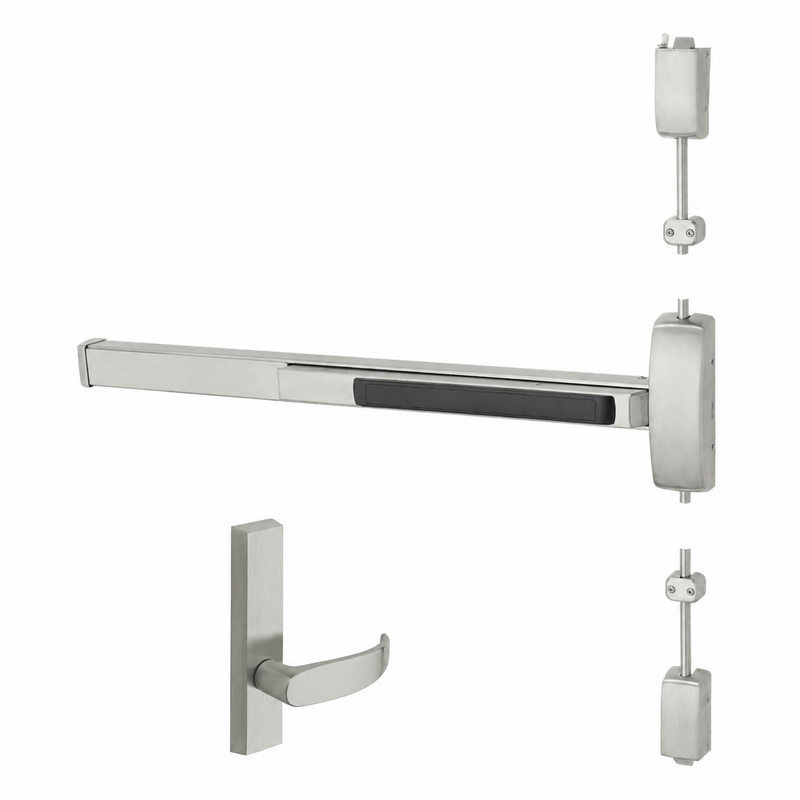

Sargent 12-8773-G-ETP-84-12V Electrified Fire Rated Surface Vertical Rod Exit Device, Fail Safe, For 43-48" Wd, 84" Ht Door

The Sargent 12-8773-G-ETP-84-12V is a heavy-duty electrified surface vertical rod exit device engineered for fire-rated openings measuring 43–48" wide and 84" tall. Built as part of Sargent's 80 Series, it combines reliable panic egress with electrified access control through the ETP electric latch retraction function. Operating on 12V, this fail-safe configuration releases the latches during a power loss, making it ideal for secured corridors, stairwells, and other code-driven applications. The G (ET) trim provides durable lever operation on the exterior, while the Grade 1 construction ensures long-term performance in high-traffic commercial environments.

Features

• Grade 1 surface-mounted vertical rod exit device suited for demanding commercial use.
• Fire-rated construction for use on labeled fire door assemblies.
• Sized for doors 43–48" wide and 84" tall.
• Electrified ETP electric latch retraction for integration with access control systems.
• Fail-safe operation releases latches on loss of power.
• Operates on 12V input voltage.
• ET (G) lever trim provides smooth exterior access.
• Non-handed design simplifies installation and stocking.

Functional Details

The ETP electric latch retraction function allows the exit device latches to be electrically retracted, permitting momentary or sustained free access when energized. In this fail-safe build, the latches retract when power is removed, allowing egress and passage during emergencies or power interruptions.

• Electric latch retraction (ELR) for remote dogging and access control integration.
• Fail-safe operation unlocks on power failure.
• Operates on 12VDC.

Included Components

This device ships with the surface vertical rod mechanism, top and bottom latch assemblies, strikes, G (ET) lever trim, and mounting hardware required for a complete fire-rated installation.
