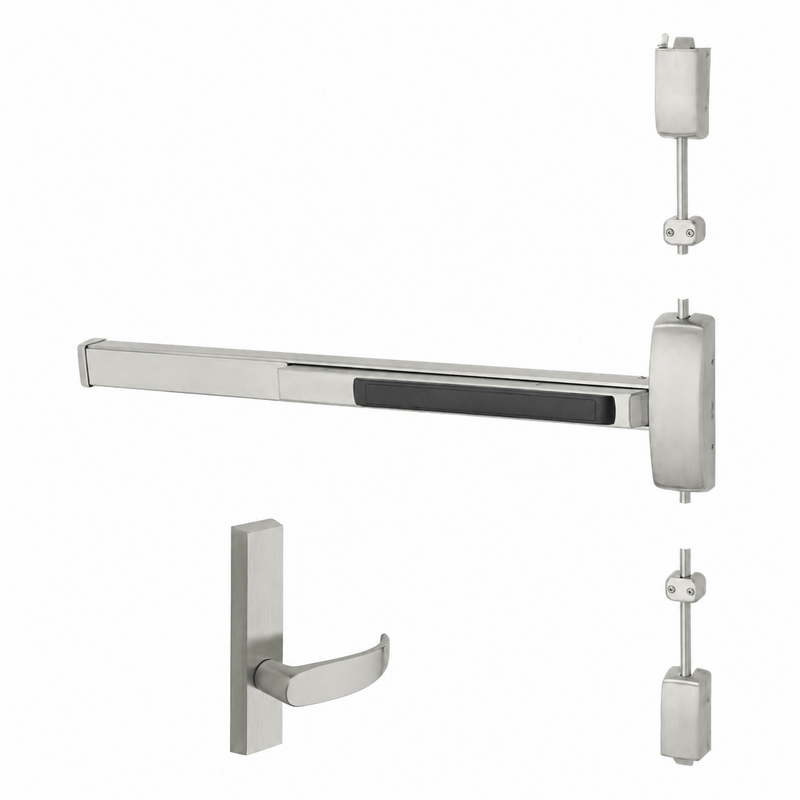

Sargent 12-8773-G-ETP-96-12V Fire Rated Surface Vertical Rod Exit Device, Electrified Trim 12V Fail Safe, ET Control, P Lever, 43-48 In Door, 96" Door Height, Less Dogging, No Cylinder, Grade 1

The Sargent 12-8773-G-ETP-96-12V is a heavy-duty electrified surface vertical rod exit device engineered for fire-rated openings requiring dependable access control. Built for doors measuring 43 to 48 inches wide and 96 inches tall, this fail-safe device unlocks the outside trim during a power loss, making it ideal for secured egress applications where safety takes priority. It pairs the robust 8700 series mechanism with the ETP electrified pull trim and operates on 12V power. Designed and manufactured in the USA, this device delivers the durability and consistent performance that commercial facilities, schools, and institutional buildings demand from their exit hardware.

Features

• Fire-rated surface vertical rod design suitable for labeled door assemblies.
• Fail-safe electrified operation unlocks the outside trim when power is removed.
• Sized for tall doors measuring 43 to 48 inches wide by 96 inches high.
• Operates on 12V DC for integration with access control systems.
• ETP electrified pull trim provides secure controlled entry from the exterior.
• G (grip) style trim option for a reliable, comfortable pull.
• Built from durable materials to withstand high-traffic commercial environments.

Functional Details

No Cylinder. 73 Function: Electrified ET Trim - Fail Safe. Power off unlocks the lever; no cylinder is included.

As a fail-safe device, the outside trim becomes unlocked whenever electrical power is interrupted, allowing entry during an emergency or power failure while free egress from the inside is always maintained through the push rail.

• Fail Safe (FSE): Outside trim is unlocked when power is removed.
• Free egress at all times from the push bar side regardless of power status.
• Energizing the device locks the outside trim for secured access control.

Included Components

This device ships as a complete surface vertical rod exit device assembly with the top and bottom rod mechanisms, the ETP electrified pull trim, and the mounting hardware required for installation on a fire-rated opening.
