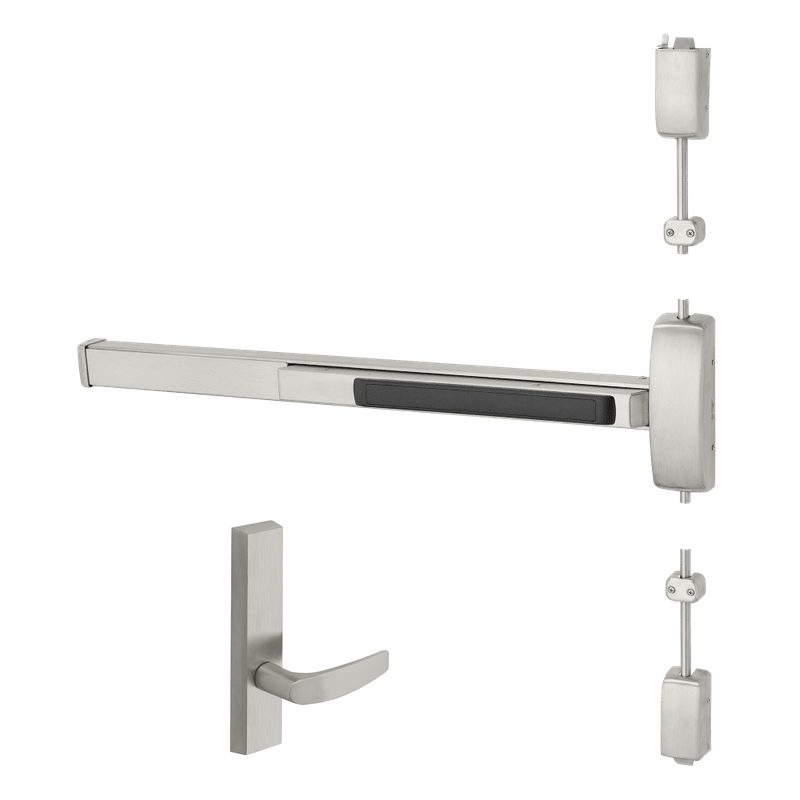

Sargent 12-8773-J-ETB-84-24V Electrified Fire Rated Surface Vertical Rod Exit Device, Fail Safe, For 37-42" Wd, 84" Ht Door

The Sargent 12-8773-J-ETB-84-24V is an electrified fire rated surface vertical rod exit device engineered for demanding commercial openings. Built on Sargent's heavy-duty 80 Series platform, it combines reliable panic exit functionality with electrified access control, operating on 24V DC in a fail safe configuration. This model is sized for doors measuring 37" to 42" wide and 84" in height, making it suitable for taller fire-rated openings. The J-ETB lever trim provides controlled entry on the outside, while the surface-mounted top and bottom rods deliver dependable two-point latching. It's a strong choice for schools, hospitals, offices, and other buildings that require secure yet code-compliant egress.

Features

• Electrified surface vertical rod exit device designed for fire rated door assemblies.
• Fail safe operation unlocks the outside trim during a power loss for safe access.
• Operates on 24V DC for integration with access control systems.
• Sized for doors 37" to 42" wide and 84" in height.
• J-ETB lever trim offers smooth, controlled outside operation.
• Surface-mounted top and bottom rods provide secure two-point latching.
• Free egress is always maintained from the inside regardless of power status.

Functional Details

In the fail safe configuration, the outside electrified trim is unlocked when power is removed, allowing entry from the exterior during a power interruption. When energized, the outside trim remains locked and requires valid access credentials or a key. The inside push bar always permits free egress, satisfying life-safety and fire code requirements.

Trim Details

The J-ETB designation refers to Sargent's ETB electrified lever trim with the J lever design. This trim controls outside access electronically while maintaining a standard lever feel, making it compatible with electronic access control hardware for remote locking and unlocking.
