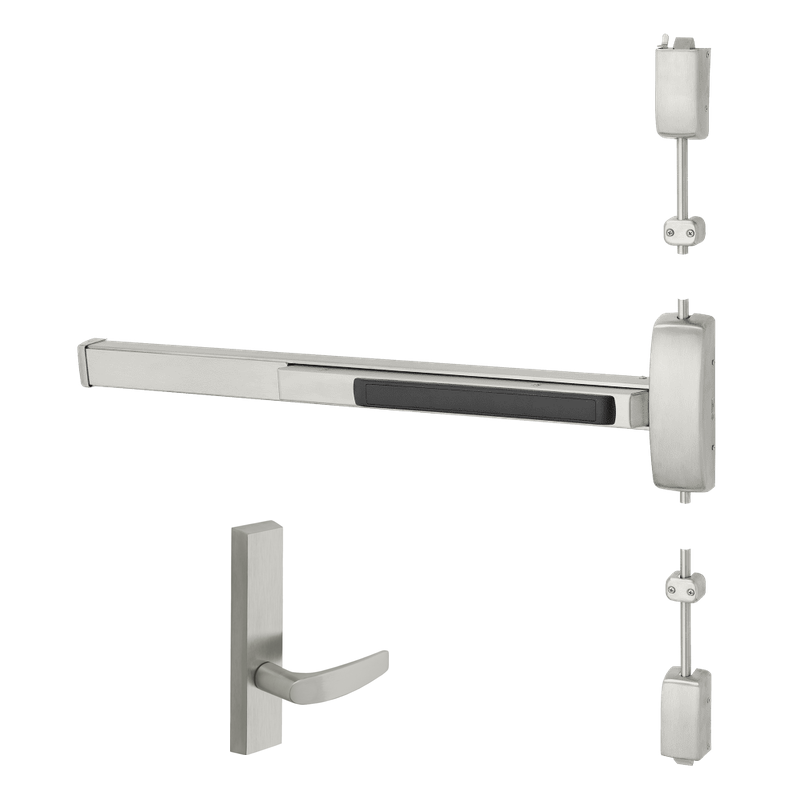

Sargent 12-8773-J-ETB-96-24V Fire Rated Surface Vertical Rod Exit Device, Electrified Trim 24V Fail Safe, ET Control, B Lever, 37-42 In Door, 96" Door Height, Less Dogging, No Cylinder, Grade 1

The Sargent 12-8773-J-ETB-96-24V is an electrified fire rated surface vertical rod exit device built for demanding commercial openings. Designed to fit doors from 37 to 42 inches wide and up to 96 inches tall, it combines reliable fire-rated egress protection with 24V electrified access control. Configured as fail safe, the unit unlocks the outside trim during a power loss to maintain safe egress and access when needed. The ETB lever trim paired with the J (medium stile) design delivers durable, code-compliant performance, making this device a strong choice for schools, healthcare facilities, and other high-traffic environments.

Features

• Electrified surface vertical rod exit device for fire-rated door assemblies.
• Fail safe operation unlocks the outside trim when power is removed.
• Sized to accommodate doors 37" to 42" wide and 96" tall.
• 24V DC electrified configuration for integration with access control systems.
• ETB lever-style outside trim for comfortable, ADA-friendly operation.
• J designation indicates medium stile application compatibility.
• Rugged construction suited to heavy daily use in commercial settings.

Functional Details

No Cylinder. 73 Function: Electrified ET Trim - Fail Safe. Power off unlocks the lever; no cylinder is included.

As a fail safe device, the outside trim is unlocked when power is removed, allowing free access during a power outage or emergency, while the exit side always permits free egress.

• Fail Safe (unlocked) when power is removed.
• Continuous duty solenoid for 24V DC operation.
• Latchbolt monitoring and electrified trim control.
• Free egress at all times from the inside.

Included Components

The device ships with the surface-mounted vertical rod exit device chassis, ETB lever trim, top and bottom latch assemblies, and standard mounting hardware for fire-rated door installation.
