Sargent 12-8773-J-ETJ-96-12V Fire Rated Surface Vertical Rod Exit Device, Electrified Trim 12V Fail Safe, ET Control, J Lever, 37-42 In Door, 96" Door Height, Less Dogging, No Cylinder, Grade 1

The Sargent 12-8773-J-ETJ-96-12V is a heavy-duty electrified surface vertical rod exit device engineered for fire-rated openings up to 96 inches tall and 37 to 42 inches wide. Built on Sargent's 80 Series platform, it combines reliable panic hardware performance with electrified access control through its 12V fail-safe design, which unlocks the ET trim during a power loss to support free egress and emergency protocols. Paired with the J lever (ETJ trim), this device delivers smooth, durable operation for high-traffic commercial, institutional, and government applications where life safety and security both matter.

Features

• Surface-mounted vertical rod configuration suited for fire-rated doors.
• Fire-rated construction provides positive latching for code-compliant fire openings.
• Electrified ET trim with J lever design for controlled access.
• 12-volt operation integrates with standard low-voltage access control systems.
• Fail-safe function unlocks the outside trim when power is removed.
• Sized for tall 96-inch doors spanning 37 to 42 inches in width.
• Rugged build engineered for demanding, high-use environments.

Functional Details

No Cylinder. 73 Function: Electrified ET Trim - Fail Safe. Power off unlocks the lever; no cylinder is included.

The fail-safe function means the outside lever trim becomes unlocked when power is removed, allowing entry during a power outage while the push rail always permits free egress. Energizing the solenoid locks the outside trim for secure access control.

• Fail Safe (24 VDC): Outside trim is unlocked when power is removed.
• Free egress at all times from the inside via the push rail.
• Latchbolt monitoring and signal switch options available for access control integration.

Arm Type Details

This is a surface vertical rod exit device, which uses top and bottom rods to engage latch points at the head and sill of the door frame. On fire-rated applications the bottom latch provides positive two-point latching required to maintain the fire rating of the opening.

Included Components

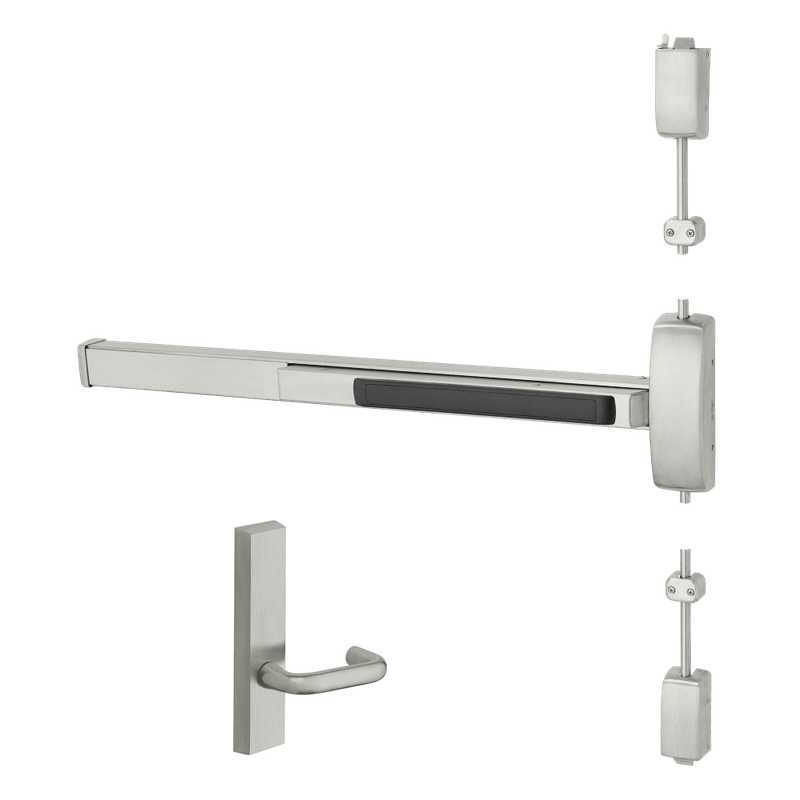

The device ships with the exit device chassis, top and bottom vertical rods and latches, the ETJ electrified lever trim with J lever design, and mounting hardware for installation on a 96-inch tall door.
