Sargent 12-8773-J-ETJ-96-24V Electrified Fire Rated Surface Vertical Rod Exit Device, Fail Safe, For 37-42" Wd, 96" Ht Door

The Sargent 12-8773-J-ETJ-96-24V is an electrified fire rated surface vertical rod exit device built for heavy traffic commercial openings that demand both security and life-safety compliance. Configured as fail safe, it releases the latch on power loss to allow free egress and access, making it ideal for stairwells and controlled-access doors. This unit fits 37"–42" wide openings on tall 96" height doors and operates on 24V. Paired with the J lever design and ETJ electrified trim, it delivers reliable remote control from an access system while maintaining the durability Sargent's 80 Series is known for.

Features

• Electrified surface vertical rod exit device for fire rated door assemblies.
• Fail safe operation unlocks the outside trim when power is removed for secure egress.
• Sized for doors 37" to 42" wide and up to 96" in height.
• Operates on 24V DC for integration with access control systems.
• ETJ electrified lever trim with the J lever design for controlled entry.
• Grade 1 construction engineered for high-use commercial environments.

Functional Details

The fail safe configuration keeps the outside trim locked while energized and releases it when power is interrupted, allowing both egress and entry during a power failure. This behavior supports stairwell re-entry and emergency access requirements.

• Fail safe (12) electrified outside trim unlocks when power is removed.
• 24V DC operation.
• UL listed for fire rated door assemblies.

Included Components

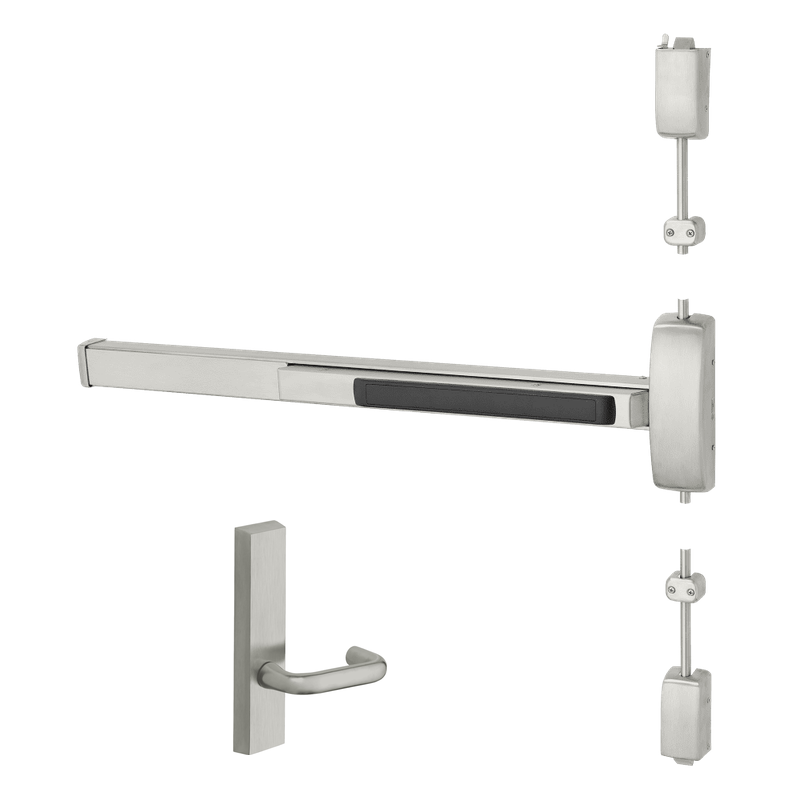

The device ships with the surface vertical rod exit chassis, top and bottom latch mechanisms, mounting hardware, and the ETJ electrified lever trim with the J lever.
