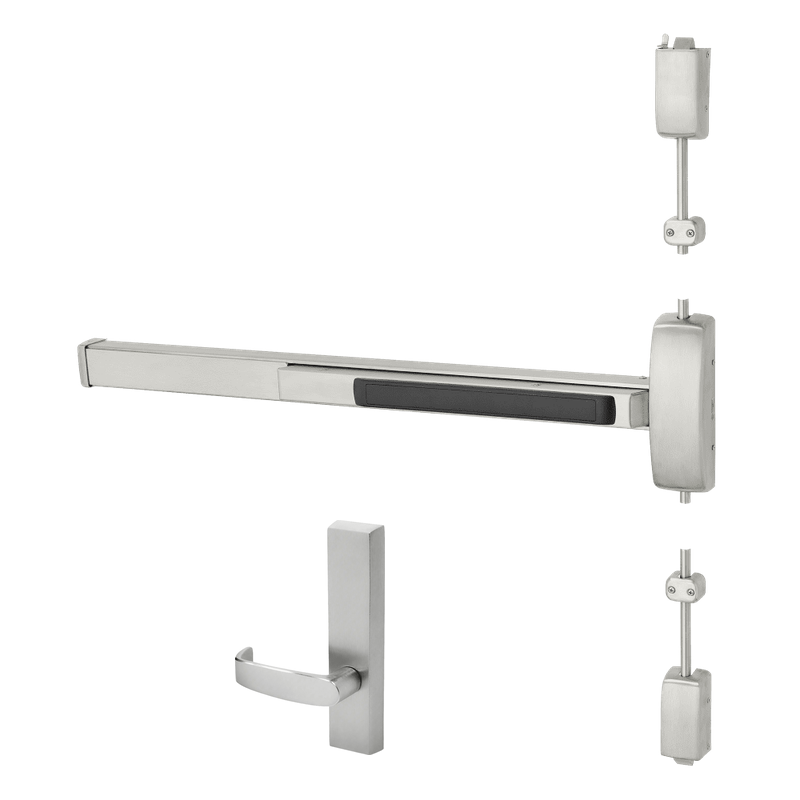

Sargent 12-8773-J-ETL-96-24V Fire Rated Surface Vertical Rod Exit Device, Electrified Trim 24V Fail Safe, ET Control, L Lever, 37-42 In Door, 96" Door Height, Less Dogging, No Cylinder, Grade 1

The Sargent 12-8773-J-ETL-96-24V is an electrified fire rated surface vertical rod exit device engineered for demanding commercial openings. Built for doors measuring 37 to 42 inches wide and up to 96 inches tall, it combines reliable fire-rated egress with electric latch retraction for controlled access. Operating on 24V DC, this fail safe configuration releases the latch during a power loss, making it well suited for applications requiring free egress under emergency conditions. The ETL (Electric Trim) with the J lever design delivers smooth, durable operation, while the 8700 series platform is recognized for its heavy-duty performance in high-traffic environments such as schools, hospitals, and office buildings.

Features

• Electrified surface vertical rod exit device with fire rated construction for added safety compliance.
• Fail safe operation unlocks the outside trim when power is removed, supporting emergency egress.
• Designed for doors 37" to 42" wide and 96" in height.
• Operates on 24V DC for integration with access control systems.
• ETL electric trim paired with the J lever design for ergonomic, reliable use.
• Heavy-duty 8700 series platform built for high-cycle commercial traffic.

Functional Details

No Cylinder. 73 Function: Electrified ET Trim - Fail Safe. Power off unlocks the lever; no cylinder is included.

This device uses electric latch retraction and electrified trim control. In the fail safe configuration, removing power unlocks the outside trim, allowing entry while always permitting free egress from the inside through the push bar.

• Fail Safe (ETL): Outside trim is unlocked when power is removed.
• Free egress at all times from the inside via the push rail.

Arm Type Details

As a surface vertical rod device, the top and bottom latch bolts engage into the frame and threshold strikes. This two-point latching arrangement is ideal for pairs of doors and fire rated openings where continuous positive latching is required.
