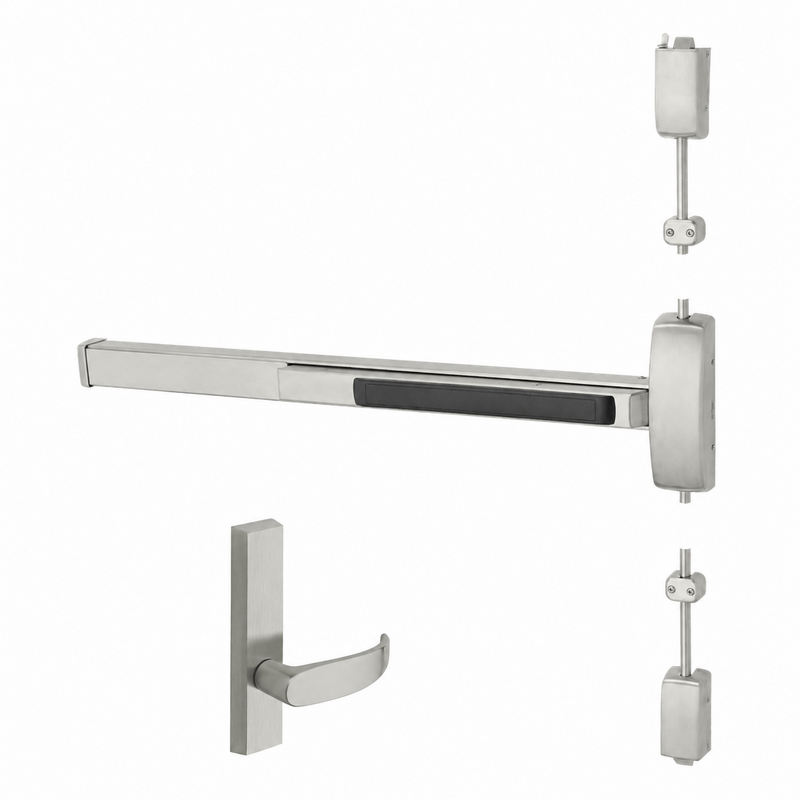

Sargent 12-8773-J-ETP-96-24V Electrified Fire Rated Surface Vertical Rod Exit Device, Fail Safe, For 37-42" Wd, 96" Ht Door

The Sargent 12-8773-J-ETP-96-24V is a fire rated surface vertical rod exit device engineered for demanding commercial openings up to 96 inches tall and 37 to 42 inches wide. Built with electrified fail safe operation at 24V, it releases the outside trim during a power loss, making it well suited for applications where free egress and controlled access must work together. The ETP trim with the J lever design delivers reliable everyday performance, while the surface-mounted vertical rods secure the door at both top and bottom. As part of Sargent's heavy-duty 80 Series, this device combines durability with the code compliance required for fire-rated doors.

Features

• Fire rated surface vertical rod exit device suitable for labeled fire door assemblies.
• Electrified fail safe function unlocks the outside trim when power is removed.
• Operates on 24V for compatibility with common access control systems.
• Sized for doors 37 to 42 inches wide and 96 inches tall.
• ETP electrified trim paired with the J lever design for smooth operation.
• Heavy-duty construction built for high-traffic commercial environments.

Functional Details

The 8773 fail safe configuration keeps the outside lever locked while energized and automatically releases it when power is interrupted, allowing entry during emergencies or power failures while always permitting free egress from the inside.

• Fail Safe (FSE): Outside trim is unlocked when power is removed.
• Continuous duty solenoid for constant electrical operation.
• Free egress at all times via the push bar.

Included Components

This device ships as a complete surface vertical rod exit device assembly, including the top and bottom rods, latch mechanism, electrified ETP trim with the J lever, and the mounting hardware required for installation on a fire-rated door.
