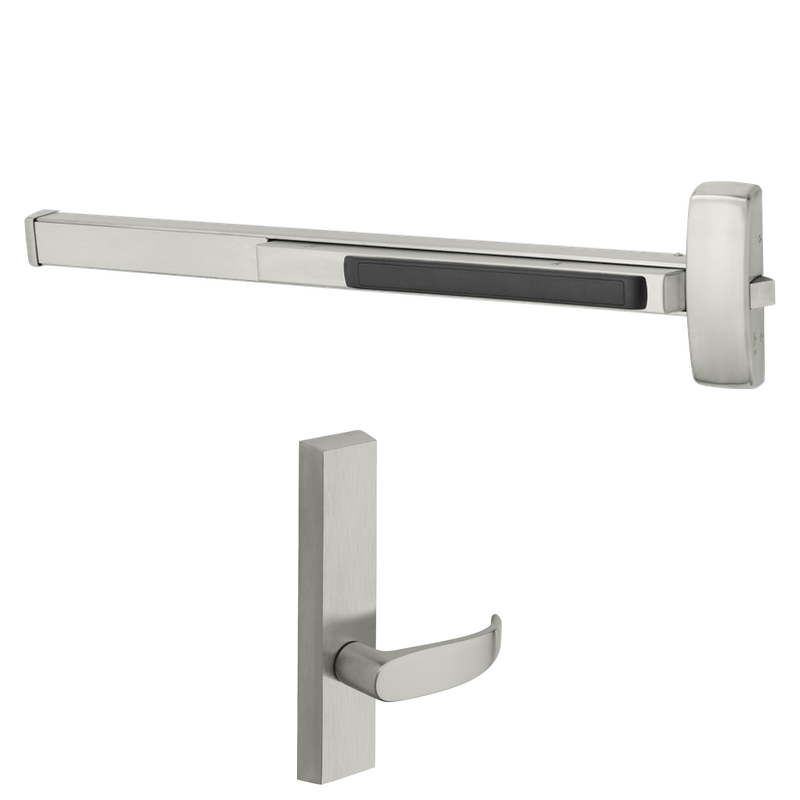

Sargent 12-8873-G-ETP-12V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, For 43-48 Inch Width Door, Less Dogging

The Sargent 12-8873-G-ETP-12V is an electrified fire rated rim exit device engineered for dependable security on wider openings measuring 43 to 48 inches. Built around Sargent's proven 80 Series platform, it combines reliable panic exit performance with electrified access control through a fail safe design. When power is removed, the outside ETP lever unlocks to allow entry, making it a practical choice for openings that must release during a power loss. Free egress is always maintained from the inside, and the fire rated construction supports code-compliant installations. With the ET trim and 12V operation, this device integrates cleanly into access control and monitoring systems.

Features

• Electrified rim exit device designed for 43 to 48 inch door widths.
• Fail safe operation unlocks the outside lever when power is removed.
• Fire rated construction suitable for labeled door assemblies.
• Less dogging feature keeps the device latched as required for fire doors.
• Equipped with the ET pull trim for exterior access.
• Operates on 12V for straightforward integration with access control.
• Continuous free egress from the interior at all times.

Functional Details

In a fail safe configuration, the exit device holds the outside lever locked while energized and releases it to the unlocked state when power is interrupted. This ensures the opening becomes accessible during a power failure, while people inside can always exit freely by pushing the touchbar.

• Fail Safe: Power OFF unlocks lever/knob, allowing free entrance.
• Outside lever/knob is locked when energized.
• Free egress at all times.
