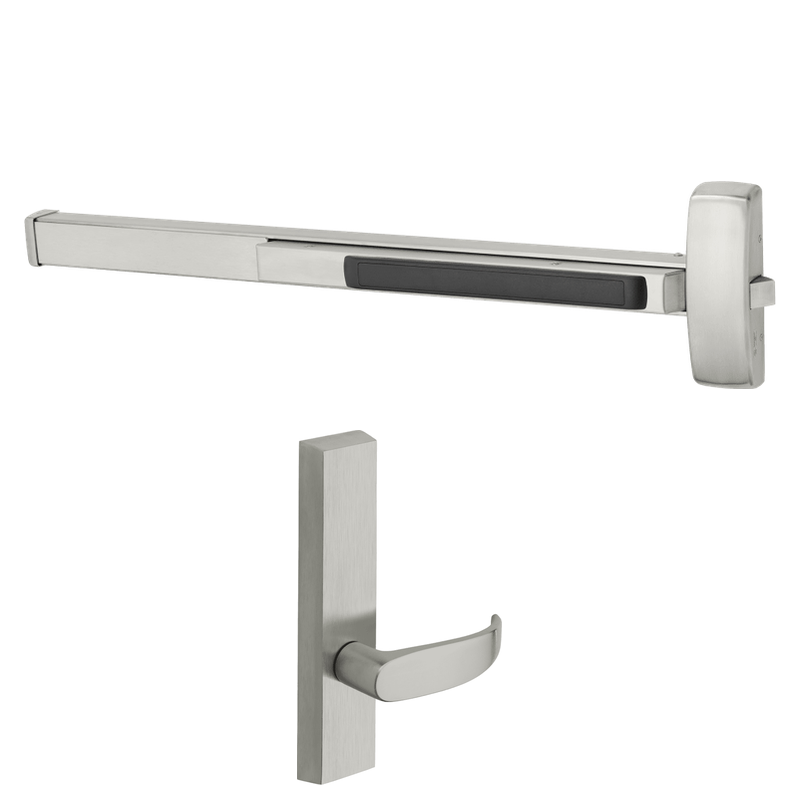

Sargent 12-8873-G-ETP-24V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, For 43-48 Inch Width Door, Less Dogging

The Sargent 12-8873-G-ETP-24V is an electrified fire rated rim exit device built for dependable access control on wide openings measuring 43 to 48 inches. As a fail safe device, the ETP (Electrified Trim Power) function unlocks the outside lever when power is removed, making it a practical choice for egress and security applications where doors must release during a power loss. Designed with the G (grooved) lever trim and operating on 24V DC, this unit comes less dogging to maintain fire rating compliance. Part of Sargent's reliable 8800 series, it delivers smooth, consistent performance in high-traffic commercial environments while meeting demanding life-safety requirements.

Features

• Electrified fail safe operation unlocks the outside lever when power is removed from the device.
• Fire rated construction suitable for labeled door and frame assemblies.
• Rim-type exit device for single door applications sized 43 to 48 inches wide.
• Supplied less dogging to preserve the fire rating.
• Operates on 24V DC for integration with access control systems.
• Grooved (G) lever trim with the ETP electrified trim configuration.

Functional Details

This device uses a fail safe electrified trim design. When power is applied, the outside lever is locked; when power is removed, the lever is released, allowing free access. Egress through the push bar is always available regardless of power status.

• Fail Safe (Power Off Unlocks Outside Lever).
• Free egress at all times from the inside via the push bar.
