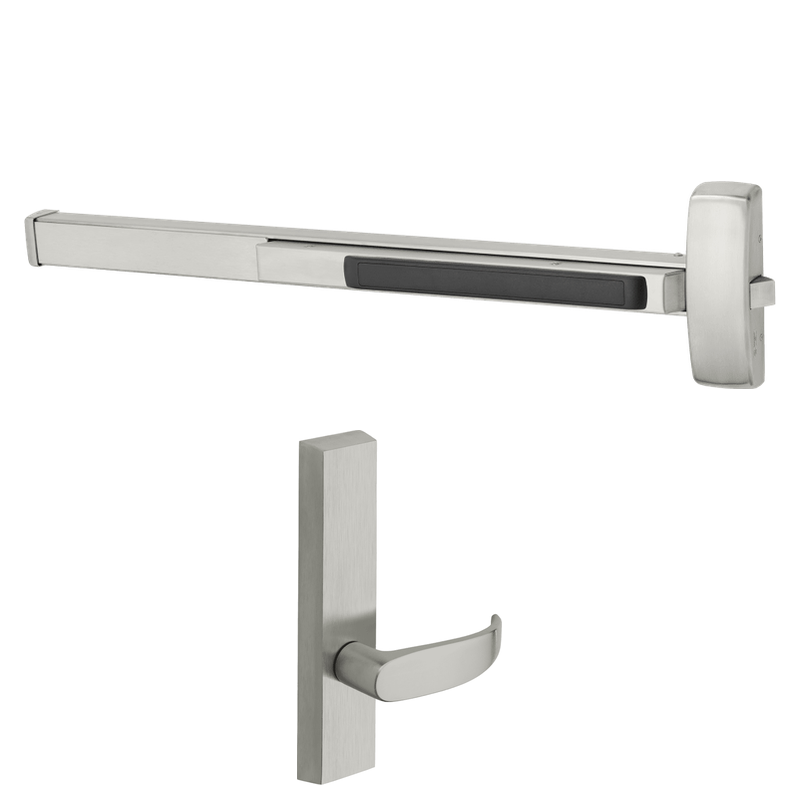

Sargent 12-8873-J-ETP-24V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, For 37-42 Inch Width Door, Less Dogging

The Sargent 12-8873-J-ETP-24V is an electrified fire rated rim exit device engineered for dependable access control on wider openings measuring 37 to 42 inches. Built around Sargent's rugged 80 Series platform, this fail safe unit unlocks the outside lever when power is removed, making it ideal for secured entries that must release during a power loss. It pairs with the ETP trim and operates on 24V, delivering smooth electrified control without compromising life safety. Fire rated and supplied less dogging to meet code requirements, it offers the durability and reliability commercial facilities expect from Sargent exit hardware.

Features

• Electrified fire rated rim exit device sized for 37 to 42 inch wide doors.
• Fail safe operation unlocks the outside lever when power is removed.
• Operates on 24V for consistent electrified performance.
• Equipped with the ETP electrified trim and J lever design.
• Supplied less dogging to comply with fire door requirements.
• Heavy-duty construction suited for high-traffic commercial applications.

Functional Details

As a fail safe electrified device, the outside lever is controlled by applied voltage. When power is present the lever is locked, and when power is removed the lever is released to allow free entry, supporting safe egress and controlled access during power interruptions.

• Fail Safe (Power Off Unlocks Lever).
• Electrically controlled outside trim.
• Fire rated for use on labeled fire door assemblies.
• Less dogging as required for fire rated applications.
