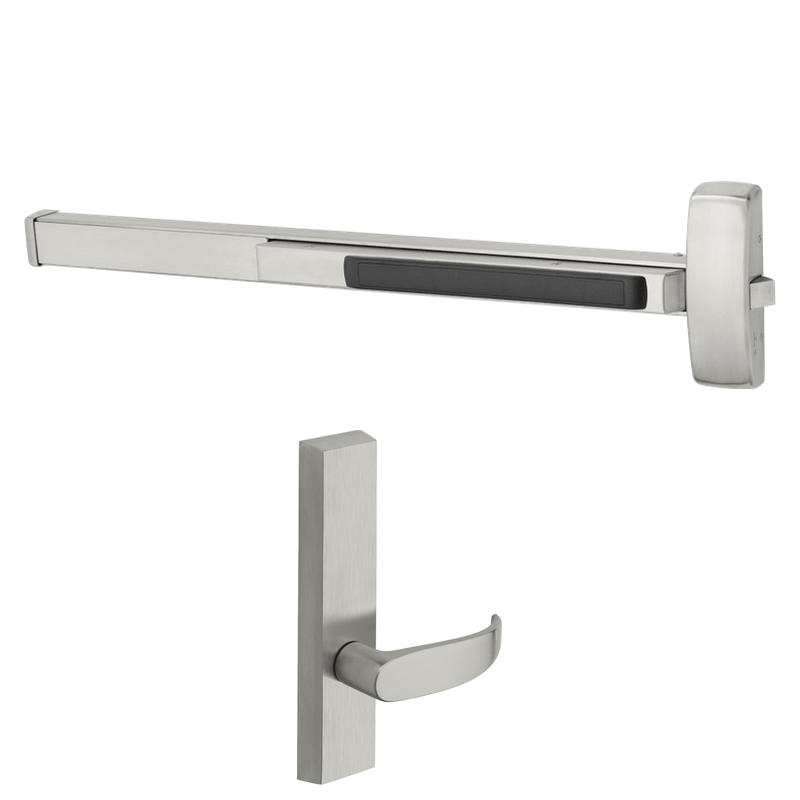

Sargent 12-8874-F-ETP-12V Electrified Fire Rated Rim Exit Device, Fail Secure Power Off Locks Lever, No Cylinder, For 33-36 Inch Width Door, Less Dogging

The Sargent 12-8874-F-ETP-12V is an electrified fire rated rim exit device engineered for commercial openings that demand reliable access control and life-safety performance. Built with a fail secure design, it keeps the ETP lever trim locked when power is removed, maintaining security during a power loss while still allowing free egress through the push rail. Sized for doors measuring 33 to 36 inches wide, this unit ships without a cylinder and operates on 12V power. As a fire rated device, it comes less dogging to meet code requirements on fire-rated door assemblies. It's a dependable choice for schools, healthcare facilities, and office buildings.

Features

• Electrified rim exit device with 12V operation for integration with access control systems.
• Fail secure function locks the outside lever trim when power is off for enhanced security.
• Fire rated construction suitable for labeled fire door assemblies.
• Sized to fit doors from 33 to 36 inches in width.
• ETP lever trim provides controlled outside access.
• Supplied less cylinder, allowing you to specify your preferred keying.
• Less dogging as required for fire-rated applications.

Functional Details

The fail secure electrification means the lever trim remains locked when power is removed, so egress is always available from the inside while outside access stays controlled. Applying power retracts the locking mechanism to permit entry through the ETP lever.

• Fail Secure (Power Off / Locks Lever): Outside lever is locked when de-energized. Key or valid credential required for entry.
• Free egress at all times from the inside via the push pad.
• 12VDC or 24VDC operation.

Included Components

This device includes the rim exit device chassis with ETP electrified lever trim prepped for 12V operation. A cylinder is not included and must be ordered separately.
