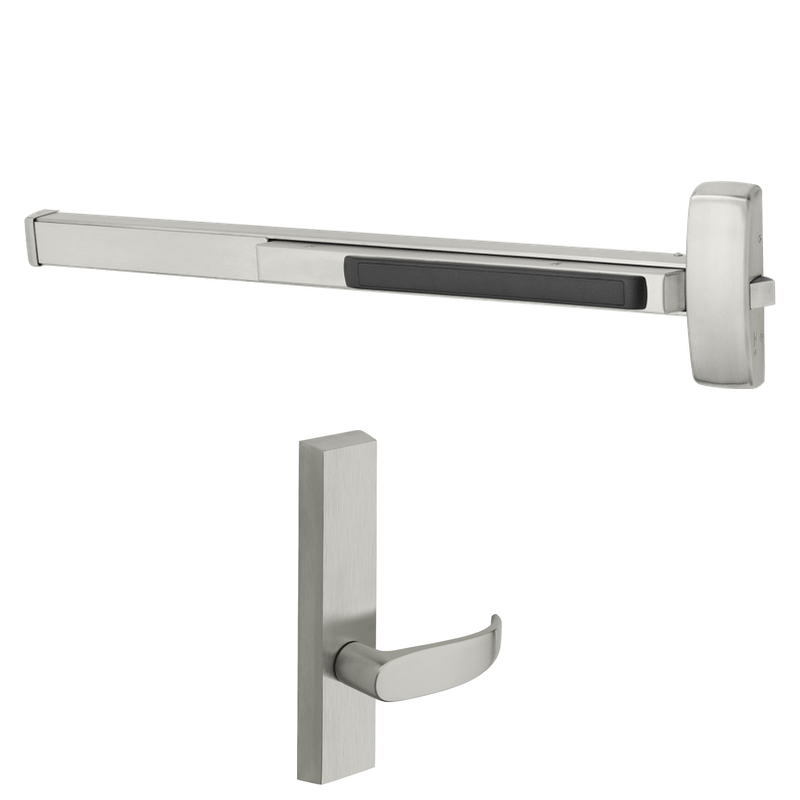

Sargent 12-8874-G-ETP-24V Electrified Fire Rated Rim Exit Device, Fail Secure Power Off Locks Lever, No Cylinder, For 43-48 Inch Width Door, Less Dogging

The Sargent 12-8874-G-ETP-24V is a heavy-duty electrified fire rated rim exit device built for high-traffic commercial openings that demand secure access control. Designed for doors measuring 43 to 48 inches wide, this device uses an ETP electrified trim with a fail secure configuration, meaning the outside lever remains locked when power is removed—ideal for maintaining security during a power loss. Operating on 24V, it provides reliable electric control over the lever while keeping free egress available at all times. Supplied less cylinder and less dogging to meet fire rating requirements, it combines Sargent's proven 80 Series durability with the dependable performance expected in demanding institutional and commercial environments.

Features

• Electrified rim exit device from the Sargent 80 Series platform for commercial-grade performance.
• Fire rated construction suitable for labeled fire door assemblies.
• Fail secure operation locks the outside lever when power is removed.
• 24V electrified ETP trim for integration with access control systems.
• Sized for doors 43 to 48 inches wide.
• Furnished less cylinder to accommodate the keying of your choice.
• Less dogging as required for fire rated applications.
• Lever-style trim offers accessible, code-compliant operation.

Functional Details

In a fail secure configuration, electric current is required to retract the outside trim latch. When power is applied, the outside lever is activated and allows entry; when power is interrupted, the lever locks, preventing unauthorized access while the inside push bar still permits free egress.

• Fail Secure: Power off locks the lever, power on unlocks the lever.
• Free egress at all times from the inside via the exit device push rail.

Arm Type Details

This is a rim-mounted exit device, meaning the mechanism and latch mount to the surface of the door and engage a strike attached to the frame. Rim devices offer straightforward installation and reliable latching for single door applications.

Included Components

Device supplied with electrified ETP lever trim. Cylinder is not included and must be ordered separately. Dogging is not provided due to the fire rated designation.
