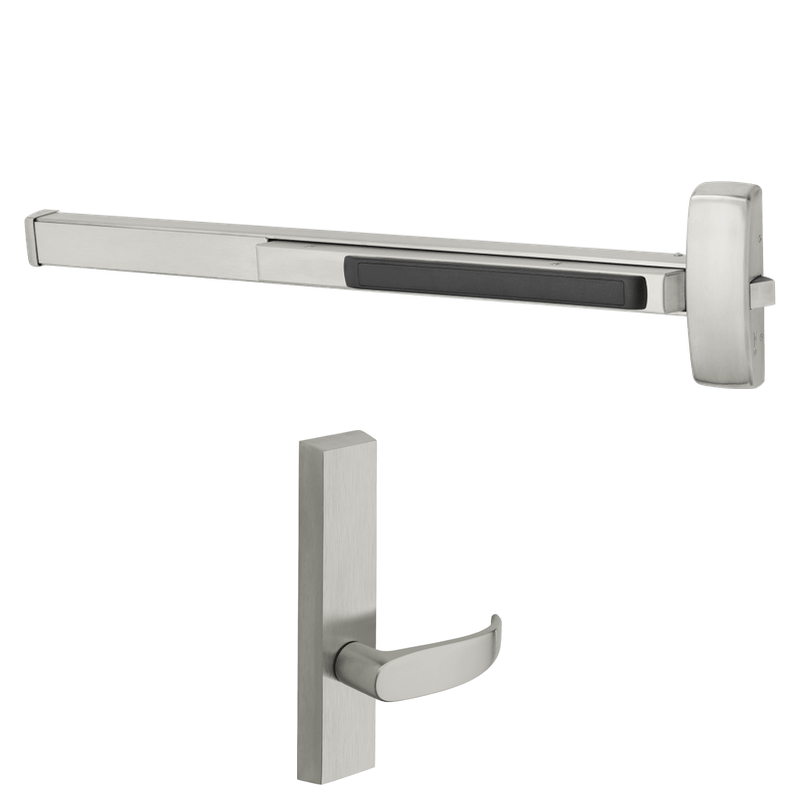

Sargent 12-8874-J-ETP-24V Electrified Fire Rated Rim Exit Device, Fail Secure Power Off Locks Lever, No Cylinder, For 37-42 Inch Width Door, Less Dogging

The Sargent 12-8874-J-ETP-24V is a heavy-duty electrified rim exit device engineered for fire-rated openings that demand both life safety and controlled access. Built to fit doors measuring 37 to 42 inches wide, this Grade 1 device operates in a fail secure configuration, meaning the outside ETP lever stays locked when power is interrupted, while free egress is always available from the inside. The 24V electrified trim allows integration with access control systems for remote locking and unlocking. Supplied without a cylinder and less dogging as required for fire-rated applications, it combines durable construction with dependable performance for commercial entrances and exit points.

Features

• Electrified rim exit device designed for fire-rated door assemblies.
• Fail secure operation keeps the outside lever locked when power is removed.
• Sized for doors 37 to 42 inches in width.
• ETP electrified lever trim operates on 24V for access control integration.
• Supplied without a cylinder to suit project-specific keying.
• Less dogging construction maintains fire-rating compliance.
• Grade 1 rated for high-frequency commercial use.

Functional Details

In the fail secure mode, removing power locks the outside lever so entry is denied, while the push bar always permits free egress from the secure side. Applying power releases the outside lever to allow authorized passage, making the device ideal for controlled-access openings.

• Fail Secure: Power off locks outside lever.
• Free egress at all times from the inside.
• Electrically controlled outside trim for remote access control.

Included Components

The device ships with the rim exit chassis, ETP electrified lever trim, and mounting hardware. A cylinder is not included and must be ordered separately to match your keying requirements.
