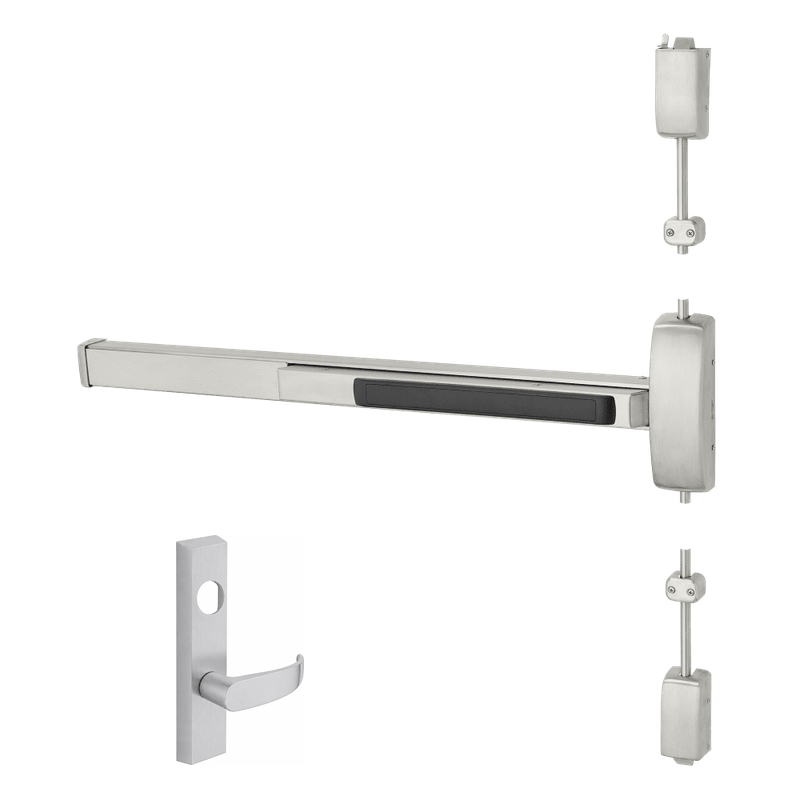

Sargent 12-LC-8706-F-ETP-96 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 33-36" Width, 96" Ht Door, Less Cylinder

The Sargent 12-LC-8706-F-ETP-96 is a fire-rated surface vertical rod exit device engineered for high-traffic commercial openings that demand dependable life-safety performance. Configured with the ETP lever trim in a storeroom function, it fits doors measuring 33" to 36" wide and up to 96" tall, making it ideal for tall entrances in schools, hospitals, and office buildings. The surface-mounted vertical rods secure the door at both the top and bottom for added strength, while the fire rating allows installation on labeled fire door assemblies. Supplied less cylinder, this device lets you match your facility's existing keying system. Its rugged construction ensures smooth, long-lasting operation.

Features

• Fire-rated construction suitable for labeled fire door assemblies requiring positive latching.
• Surface-mounted vertical rod design latches at both the top and bottom of the door.
• Storeroom function keeps the outside lever locked at all times while allowing free egress.
• Sized for doors 33" to 36" wide and up to 96" in height.
• ETP lever trim provides a comfortable, ADA-compliant grip for everyday use.
• Supplied less cylinder for easy integration into existing keying systems.

Functional Details

The storeroom function (12) keeps the outside lever continuously locked, requiring a key to retract the latch for entry. The latchbolt is released only momentarily by the key and relocks automatically. Pushing the exit bar from the inside always allows free egress.

• Outside lever is always locked.
• Key retracts latchbolt for entry.
• Latchbolt automatically relocks when key is released.
• Free egress at all times by pressing the push bar.

Included Components

This device ships as a complete surface vertical rod exit device assembly with top and bottom rods, strikes, and the ETP lever trim. A mortise cylinder is not included and must be ordered separately to complete keying.
