Sargent 12-LC-8706-G-ETB-84 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 84" Ht Door, Less Cylinder

The Sargent 12-LC-8706-G-ETB-84 is a fire rated surface vertical rod exit device engineered for demanding commercial openings. Configured for storeroom function with the ETB (B) lever trim, it provides secure, controlled egress while keeping the door locked from the outside. Built to fit doors measuring 43 to 48 inches wide and 84 inches tall, this device ships less cylinder, giving installers the flexibility to match existing keying systems. As part of Sargent's heavy-duty 80 Series line, it delivers reliable Grade 1 performance, fire-rated protection, and the durability expected in high-traffic schools, hospitals, and institutional buildings.

Features

• Fire rated surface vertical rod exit device suitable for labeled fire door assemblies.
• Storeroom function keeps outside trim locked at all times while allowing free egress.
• ETB (B) lever trim offers a durable, ergonomic grip for everyday use.
• Sized for doors 43 to 48 inches wide and 84 inches tall.
• Supplied less cylinder for integration with your preferred keying system.
• Grade 1 construction built for heavy-duty commercial and institutional traffic.

Functional Details

The storeroom function means the outside lever is always fixed and requires a key to unlock momentary entry, while the push bar always allows immediate free egress from the secure side.

• Outside trim is continuously locked.
• Key retracts latch for momentary access; latch relocks when door closes.
• Free egress at all times from the inside via the push rail.

Included Components

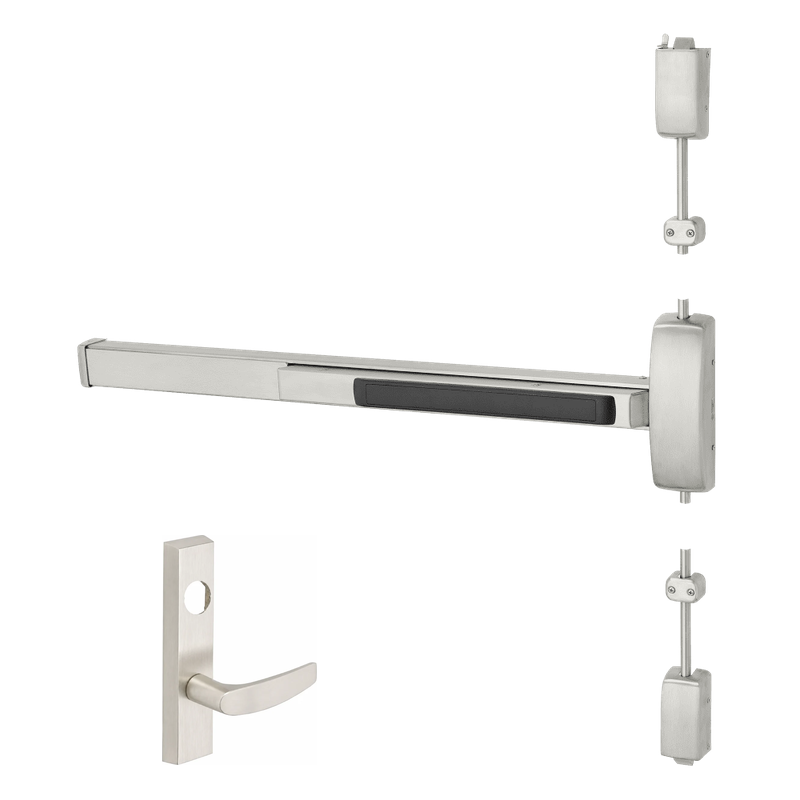

This order includes the surface vertical rod exit device chassis, top and bottom latch assemblies, vertical rods, and the ETB lever trim. A cylinder is not included and must be ordered separately.
