Sargent 12-LC-8706-G-ETB-96 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 96" Ht Door, Less Cylinder

The Sargent 12-LC-8706-G-ETB-96 is a fire rated surface vertical rod exit device engineered for demanding commercial openings. Built for doors measuring 43-48" wide and 96" tall, it pairs reliable panic egress with storeroom-function access control. The ETB (B-style) lever trim keeps the outside lever locked at all times, requiring a key to retrieve latch access, while free egress is always available from the inside. Supplied less cylinder, this model lets you specify the cylinder to match your existing keying system. Its durable construction and fire rating make it a dependable choice for stairwells, corridors, and other code-regulated passages.

Features

• Fire rated surface vertical rod exit device suitable for labeled door and frame assemblies.
• Storeroom function keeps the outside lever locked while allowing continuous free egress from inside.
• Sized for tall doors 43-48" wide and 96" in height.
• ETB lever trim (B design) offers an ergonomic, ADA-compliant grip.
• Furnished less cylinder so you can match your facility's keying.
• Heavy-duty components deliver dependable performance in high-traffic settings.

Functional Details

The storeroom (12/06) function provides secure, key-controlled access from the outside while permitting unrestricted egress through the exit device at all times.

• Outside trim is always locked.
• Key retracts the latch for momentary access; the latch relocks when the key is released.
• Free egress at all times by depressing the push bar.

Arm Type Details

This is a surface mounted vertical rod exit device. Depressing the push bar simultaneously retracts both the top and bottom latch bolts, releasing the door, and the vertical rods secure the door at the top and bottom of the frame for added fire and security performance.

Included Components

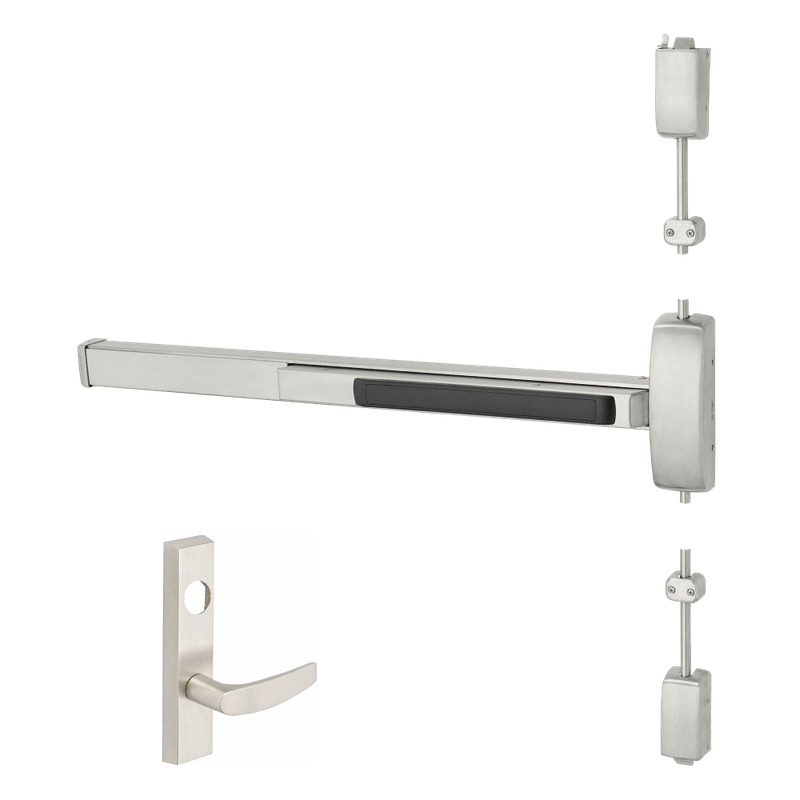

The device ships with the 8700 series vertical rod chassis, ETB lever trim, surface mounted top and bottom rods and latches, and mounting hardware. A cylinder is not included and must be ordered separately.
