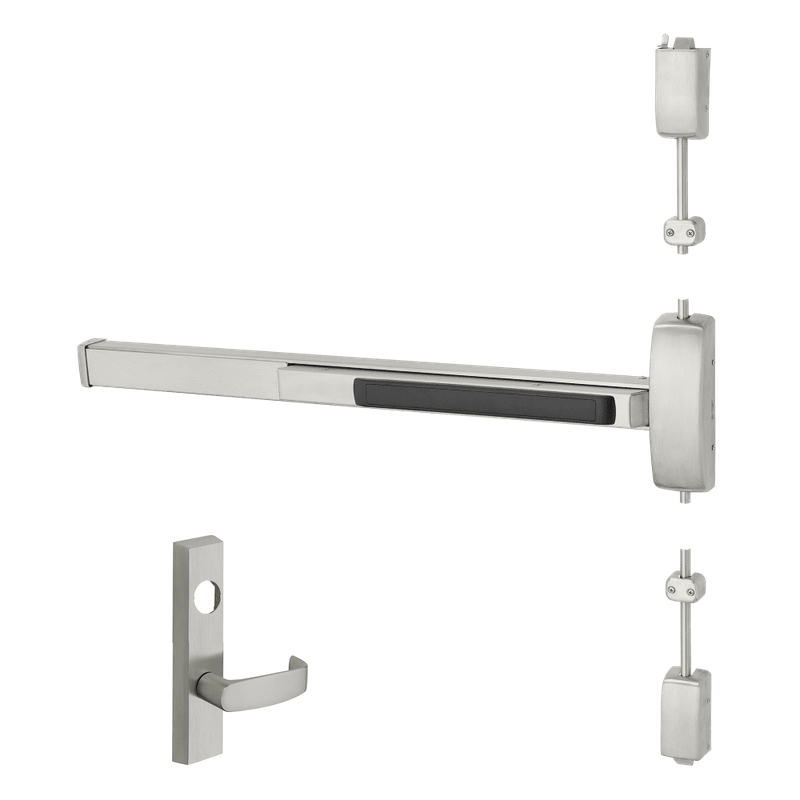

Sargent 12-LC-8706-G-ETL-96 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 96" Ht Door, Less Cylinder

The Sargent 12-LC-8706-G-ETL-96 is a fire rated surface vertical rod exit device engineered for wide, tall openings measuring 43-48" in width and up to 96" in height. Configured for storeroom function with the G (ETL) lever trim, this device delivers reliable panic egress while keeping the exterior lever locked at all times. The "LC" designation means it ships less cylinder, giving you the flexibility to pair it with your preferred cylinder and keying system. Built to Sargent's Grade 1 standards, it combines durable construction with dependable fire door performance, making it a strong choice for commercial and institutional applications where security and code compliance matter.

Features

• Fire rated surface vertical rod design suitable for rated door assemblies.
• Sized for 43-48" wide doors with a 96" height configuration.
• Storeroom function keeps the outside lever continuously locked.
• Supplied less cylinder for compatibility with your chosen keying system.
• Grade 1 construction for heavy-duty commercial use.
• ETL (G) lever trim for comfortable, accessible operation.

Functional Details

The storeroom function provides secure control of the opening while allowing free egress at all times. The latch is retracted by the key or by operating the inside push rail, but the outside lever remains locked regardless of key position.

• Outside lever is always locked.
• Latch retracted by key outside or by push rail inside.
• Key cannot leave the cylinder while retracting the latch.
• Auxiliary latch deadlocks the pullman latch.

Arm Type Details

This is a surface-mounted vertical rod exit device. Top and bottom latches engage strikes at the head and sill of the frame, distributing holding force along the full height of the door for added security on taller openings.

Included Components

The device ships with the exit device chassis, surface vertical rods, top and bottom latch mechanisms, and the G (ETL) lever trim. A mortise cylinder is required but not included due to the less-cylinder configuration.
