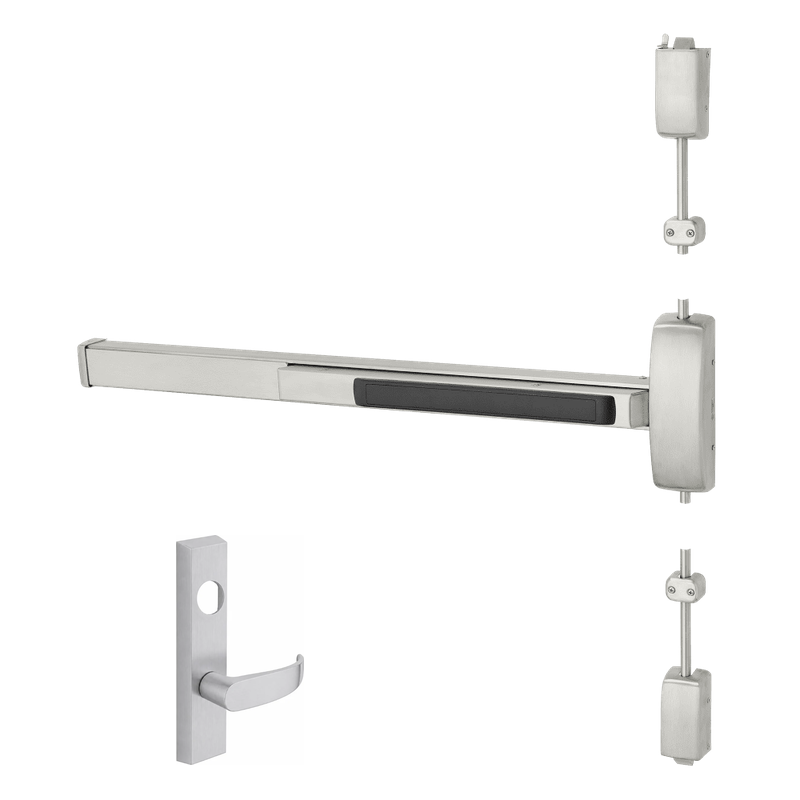

Sargent 12-LC-8706-G-ETP-96 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 96" Ht Door, Less Cylinder

The Sargent 12-LC-8706-G-ETP-96 is a fire rated surface vertical rod exit device engineered for heavy-duty commercial openings. Built for doors measuring 43" to 48" wide and up to 96" in height, this device pairs reliable panic egress with storeroom-function control through the G-ETP trim. The storeroom configuration keeps the outside lever locked at all times, while the lever retracts the latch when a cylinder is operated. Supplied less cylinder, it accepts a mortise cylinder of your choice for keying flexibility. As part of Sargent's 80 Series, it delivers the durability and code compliance demanded by schools, healthcare facilities, and institutional buildings.

Features

• Fire rated surface vertical rod design suitable for labeled fire door assemblies.
• Sized for doors 43" to 48" wide and up to 96" in height for tall opening applications.
• Storeroom function keeps the outside lever locked with key-controlled latch retraction.
• Supplied less cylinder to allow integration with your existing keying system.
• ETP escutcheon trim with the G lever design for a durable, ADA-compliant grip.
• Non-handed device that fits a wide range of door preparations.

Functional Details

The storeroom function (06) provides secure access control for areas requiring the outside lever to remain locked at all times. Entry is gained only by key, while free egress is always available from the inside by pressing the push bar.

• Latchbolt retracted by lever from inside at all times.
• Outside lever is always rigid (fixed) and does not retract the latch.
• Key in outside cylinder retracts the latchbolt.
• Auxiliary deadlatch deadlocks the latchbolt when the door is closed.

Included Components

The device ships with the surface-mounted vertical rod exit chassis, top and bottom latch assemblies, strikes, and the G-ETP escutcheon trim with lever. A mortise cylinder is not included and must be ordered separately.
