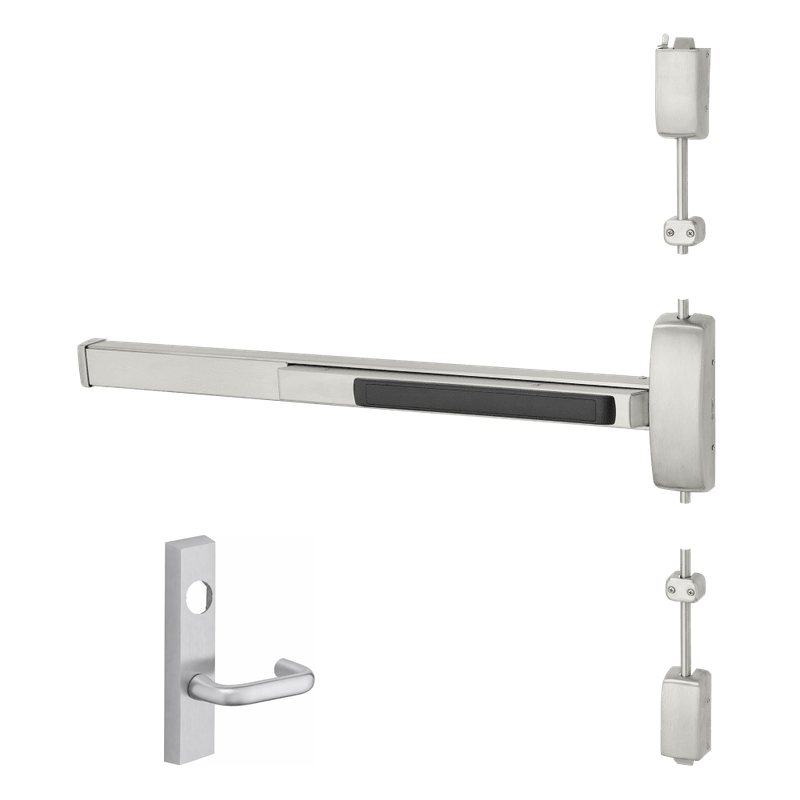

Sargent 12-LC-8706-J-ETJ-96 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 37-42" Width, 96" Ht Door, Less Cylinder

The Sargent 12-LC-8706-J-ETJ-96 is a fire rated surface vertical rod exit device engineered for heavy-duty commercial openings that demand reliable egress and controlled access. Configured for storeroom function, this device keeps the outside lever locked at all times while allowing free egress from the inside, making it ideal for secured service areas, utility rooms, and stairwells. Built to fit doors ranging from 37 to 42 inches wide and up to 96 inches tall, it ships less cylinder to accommodate your preferred keying system. The J escutcheon trim with ETJ lever delivers durable performance and ADA-compliant operation across demanding applications.

Features

• Surface-mounted vertical rod design provides top and bottom latching for added door security.
• Fire rated construction suitable for labeled fire door assemblies requiring positive latching.
• Storeroom function keeps the outside lever locked while permitting free egress at all times.
• Sized for doors 37–42 inches wide and 96 inches tall to handle oversized openings.
• Supplied less cylinder, allowing integration with existing keying systems.
• ETJ lever trim with J escutcheon offers smooth, ADA-compliant operation.

Functional Details

The storeroom function (06) secures the opening by keeping the outside lever locked continuously. Entry from the exterior requires a key, while the inside push bar always allows immediate, free egress for life-safety compliance.

• Outside lever is always locked.
• Key retracts latch for entry.
• Free egress at all times from the inside.

Arm Type Details

This device uses a surface-mounted vertical rod mechanism with top and bottom latch points. When the push bar is depressed, both the top and bottom rods retract simultaneously, releasing the door for exit and re-latching securely when the door closes.

Included Components

The device includes the exit chassis, surface vertical rods, top and bottom latches, ETJ lever with J escutcheon trim, and required mounting hardware. Cylinder is not included and must be ordered separately.
