Sargent 12-LC-8706-J-ETP-84 Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 37-42" Width, 84" Ht Door, Less Cylinder

The Sargent 12-LC-8706-J-ETP-84 is a fire rated surface vertical rod exit device engineered for demanding commercial openings up to 42 inches wide and 84 inches tall. Configured for storeroom function with the ETP lever trim and J escutcheon design, this device provides reliable latching while remaining locked from the outside until a key is used. Supplied less cylinder, it lets you specify the keying system of your choice. Built to Grade 1 standards from the trusted 8700 series, it delivers dependable security, code-compliant egress, and long-term durability for schools, offices, healthcare facilities, and other high-traffic environments.

Features

• Fire rated surface vertical rod design suitable for labeled door assemblies.
• Storeroom function keeps the outside trim locked at all times until unlocked by key.
• Sized for doors measuring 37" to 42" wide and 84" tall.
• Supplied less cylinder for flexible keying options.
• ETP lever trim with J escutcheon for comfortable, ADA-friendly operation.
• Grade 1 construction from Sargent's 8700 series for heavy-duty performance.
• Free egress at all times for life-safety compliance.

Functional Details

The storeroom function (identified by the 06 in the device number) keeps the exterior lever continuously locked, requiring a key for access, while the inside push rail always allows immediate free egress.

• Outside trim is always locked.
• Key unlocks the outside lever momentarily for entry.
• Latchbolt is retracted by the key or by operating the inside push rail.

Arm Type Details

As a surface vertical rod device, the 8706 uses top and bottom latch points connected by exposed surface-mounted rods. When the push rail is depressed, both latches retract simultaneously to release the door, providing secure two-point latching ideal for pairs of doors and tall openings.

Included Components

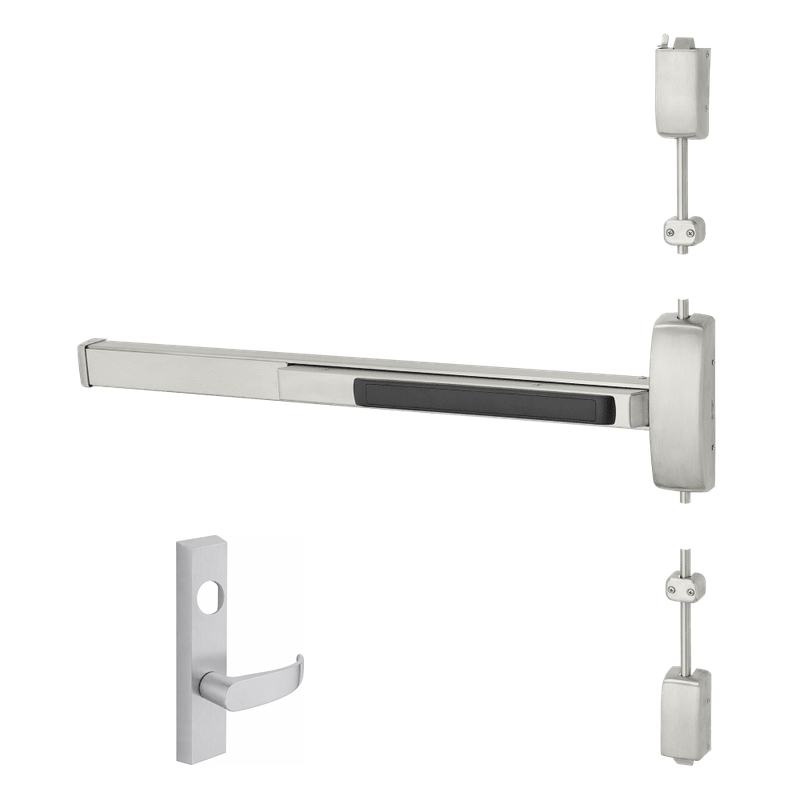

This device ships with the surface vertical rod exit mechanism, ETP lever trim with J escutcheon, top and bottom latch assemblies, and mounting hardware. A cylinder is not included and must be ordered separately.
