Description

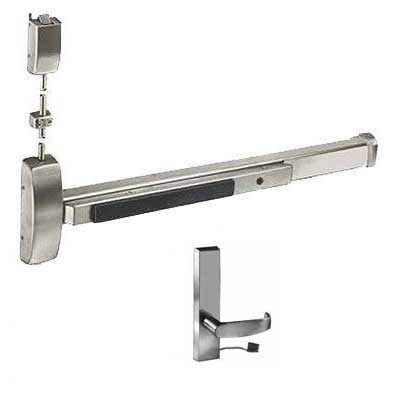

The Sargent 12-NB8773-F-ETL-84-24V Top Latching Surface Vertical Rod Fire Rated is a 36" Exit Device that has a 24V Electrified ETL Lever trim, Fail-Safe function - Power Off, Unlocks Lever. The 12-NB8773-F-ETL-84-24V has an 84" high rod and comes with a 33"-36" rail length. The 12-NB8773-F-ETL-84-24V Is a Grade One Exit Device Ideal For Commercial And Institutional Facilities.
73 Electrified ET Trim - Fail Safe
Power Off, Unlocks Lever (No Cylinder)
The NB8700 Series is a top latch surface vertical rod exit device.
The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics and innovation. This series has both rated and non-rated openings.
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix; 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Device to Accept Electrified Trim |
| Device Length | 36" |
| Hand | LHR or RHR |
| Mechanical Options | Less Bottom Rod |
| Dogging Options | Less Dogging |
| Top Strike | 646 |
| Includes Trim | Yes, ETL |
| Trim Type | Less Trim |
| Includes Cylinder(s) | No |
| Cylinder Type | Non-Keyed |
| Minimum Stile Size | 3-1/2" |
| Door Material | Metal or Wood |
| Door Width | 33" to 36" |
| Door Height | 84" |
| Door Thickness | 1-3/4" to 2-1/4" |
| Fire Rated | Yes |
| Reversible | No |
| Product Type | Surface Vertical Rod Exit Devices |
