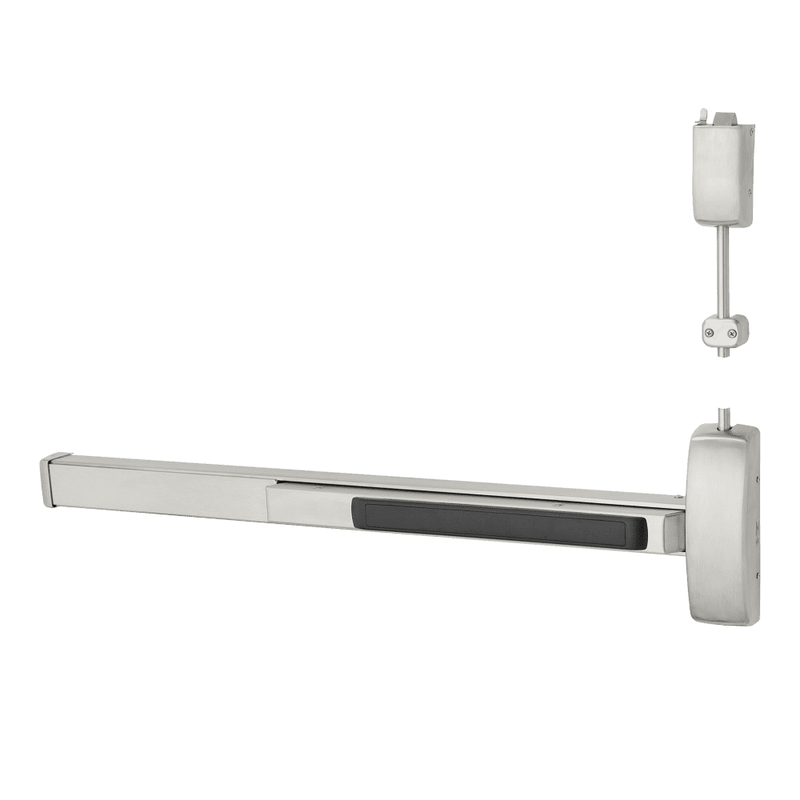

Sargent 12-NB-8774-F-96-24V-US32D Electrified Fire Rated Surface Vertical Rod Exit Device, Fail Secure Function, For 33-36" Width, 96" Ht Door, Less Bottom Rod, Exit Only, Satin Stainless Steel

  • SKU: 12NB8774F9624VUS32DLHR
12NB8774F9624VUS32DLHR — Sargent
Zoomed view
All SARGENT Products

Sargent 12-NB-8774-F-96-24V-US32D Electrified Fire Rated Surface Vertical Rod Exit Device, Fail Secure Function, For 33-36" Width, 96" Ht Door, Less Bottom Rod, Exit Only, Satin Stainless Steel

  • SKU: 12NB8774F9624VUS32DLHR
  • ✓
    Ships in (3‑4 Weeks)
    3-4 Weeks Lead Time
Your Price
$1,781.86/ea
0% Net 30 Days: Apply Now
Handing: LHR Left Hand Reverse

Sargent 12-NB-8774-F-96-24V-US32D Fire Rated Surface Vertical Rod Exit Device, Electrified Trim 24V Fail Secure, Exit Only, Less Trim, 33-36" Dr, 96" Dr Ht, Less Dogging, Less Bottom Rod, Includes Thermal Pin, No Cylinder, Grade 1, US32D-630 Satin Stainless Steel

The Sargent 12-NB-8774-F-96-24V-US32D is a Grade 1 NB8700 top-latching surface vertical rod exit device, less bottom rod for 33 to 36-inch door widths and 96-inch door height. This 12- configuration is fire-rated. This SKU is supplied less outside trim for the specified exit-only configuration.

  • 33 to 36-inch door width; 96-inch door height.
  • Single-point top latching; no bottom rod or bottom strike.
  • Less dogging for the fire-rated configuration.
  • Thermal pin supplied with the 12-NB configuration.
  • ANSI/BHMA A156.3 Grade 1.

The specified 74 function denotes Fail Secure electrified ET trim operation at 24VDC: power off locks the outside lever when the applicable trim is installed. This item is supplied less trim; no exterior lever trim or cylinder is included. The function description does not mean that electrified outside trim is furnished with this SKU.

Series NB8700
Function 74 - Fail Secure
Specified Voltage 24VDC
Outside Trim Less trim; not included
Cylinder No cylinder
Door Width 33 to 36 inches
Door Height 96 inches
Rail Size F
Handing Select LHR or RHR variant; match the supplied trim to the opening
Dogging Less dogging
Latching Top latch only; less bottom rod
Minimum Stile Width 4-1/2 inches with trim; 3-1/2 inches without trim
Door Thickness 1-3/4 inches minimum; thicker doors require the appropriate option
Pushbar Projection - Neutral 3 inches
Pushbar Projection - Depressed 2-1/8 inches
Center Case 8-3/8 x 2-5/8 inches
Thermal Pin Supplied with 12-NB device

The 12- prefix identifies the fire-rated configuration. The permitted rating and opening size depend on the listed door material, opening arrangement and complete assembly. Refer to the SARGENT fire-door rating chart; a three-hour rating does not apply automatically to every opening.
