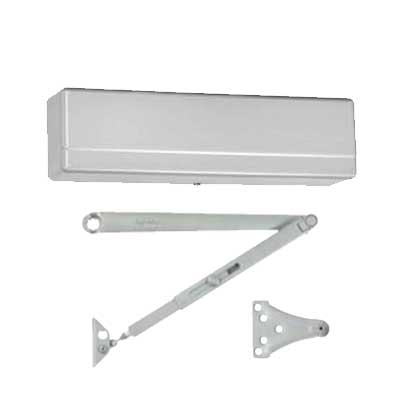

Sargent 1431-UO-TB Powerglide Surface Door Closer, Universal Arm Mounting, Tri-Packed, Mount Pull Side, Push Side, or Top Jamb, With Thru Bolts, Grade 1
The 1431 Series of surface-mounted door closers has been engineered to meet the demands of architects and building owners. It is a complete line of interior and exterior door closers with quality and flexibility to meet virtually every application.
• Exceeds 15 Million cycles
• Certified ANSI/BHMA A156.4 Grade 1
• UL 10C listed for positive pressure fire test
• UL / cUL listed for use on fire-rated doors
• 25-year limited warranty
• User-friendly versatile mounting applications permit standard, top jamb, parallel, and track installations.
• Self-sticking templates supplied for most applications
• Adjustable spring power allows 1431 closers in a size range of 1 through 6. They are adjusted to size three before leaving the factory
• One door closer body for all applications. All 1431 are non-handed
• Meets ADA requirements in all applications, except Push Side Track application (except track)
• High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead-lined are optional
• All weather fluid allows closer to operate effectively in extreme temperatures without readjustment
• 1-1/2" diameter piston for superior door control
• Standard pressure relief valves for both opening and closing cycles protect the door and frame from damage caused by abuse
• Retrofits existing SARGENT
