Description

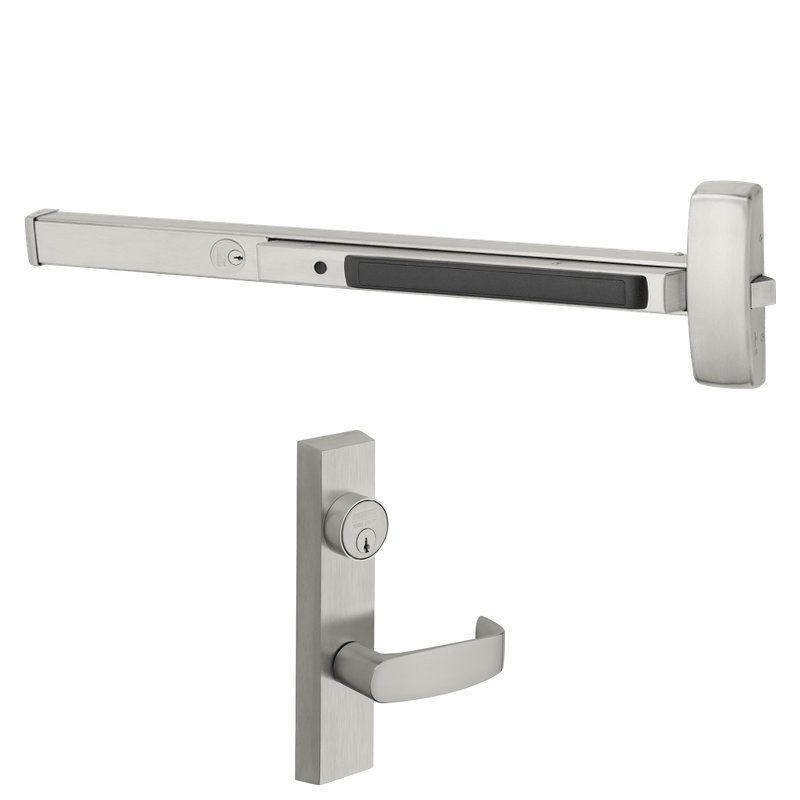

Sargent 16-8804-F-ETL Rim Exit Device, Night Latch Function, ET Control, L Lever, 33-36 Inch Door, Cylinder Dogging, Grade 1, LA Keyway, Keyed Different
The Sargent 16-8804-F-ETL is a Grade 1 rim exit device built for dependable performance on high-traffic commercial openings. Designed for doors measuring 33 to 36 inches wide, it delivers night latch function through an ET control trim paired with the L lever, allowing secure access from the outside with a key while permitting free egress from the inside. Cylinder dogging keeps the latch retracted for push/pull operation during busy periods, and the LA keyway comes keyed different for individualized access control. Fire-rated and backed by Sargent's reputation for rugged construction, this exit device is a solid choice for schools, offices, and institutional buildings where safety and durability matter.
Features
- Grade 1 rim exit device engineered for heavy-duty commercial use.
- Night latch function allows keyed entry from the outside while maintaining free egress.
- ET control trim with L lever for comfortable, code-compliant operation.
- Cylinder dogging mechanism holds the latch retracted for continuous push/pull access.
- Sized for doors from 33 to 36 inches wide.
- LA keyway supplied keyed different for unique keying.
- Fire-rated (F) construction suitable for labeled openings.
Functional Details
The night latch (8804) function provides exterior key access that retracts the latch while the inside push rail always allows free egress. Cylinder dogging uses a keyed cylinder to mechanically hold the latch retracted, converting the device to push/pull operation during periods of high traffic.
- Night Latch - Key outside unlatches/latches. Push rail always unlatches to allow egress.
- Cylinder dogging mechanically holds the pushpad depressed and latch retracted for push/pull function.
Arm Type Details
The ET control trim uses the L lever design, providing a sturdy lever handle for exterior access on night latch applications. The lever operates the latch when unlocked by key, while the inside pushpad remains the primary means of egress.
Product Specifications
| Manufacturer | Sargent |
| SKU | 16-8804-F-ETL |
| Grade | Grade 1 |
| Device Type | Rim Exit Device |
| Function | Night Latch (8804) |
| Dogging Type | Cylinder Dogging |
| Fire Rating | Fire Rated (F) |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed |
| ANSI Number | ANSI/BHMA A156.3 |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
Technical Specifications
| Door Width Range | 33 to 36 inches |
| Trim Control | ET Control |
| Lever Style | L Lever |
| Keyway | LA |
| Keying | Keyed Different |
| Cylinder | Mortise Cylinder for Dogging |
| Mounting | Rim Mounted |
| Latch Type | Deadlatching Latchbolt |
| Handing | Non-Handed |
| Door Type | Wood or Metal |
