Description

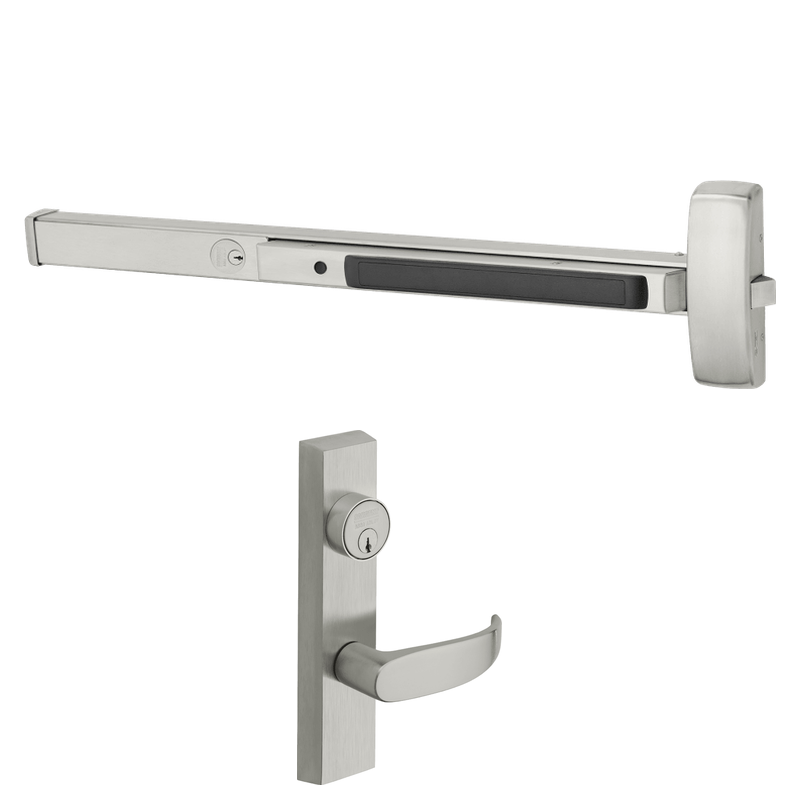

Sargent 16-8804-F-ETP Rim Exit Device, Night Latch Function, ET Control, P Lever, 33-36 Inch Door, Cylinder Dogging, Grade 1, LA Keyway, Keyed Different
The Sargent 16-8804-F-ETP is a Grade 1 rim exit device built for high-traffic commercial openings on doors measuring 33 to 36 inches wide. Configured with the 8804 night latch function, it allows free egress at all times while the outside ET trim with a P lever provides keyed entry from the exterior. The device features cylinder dogging, which lets authorized users hold the pushbar retracted using a key for push/pull operation during business hours. Supplied with an LA keyway cylinder keyed different, this fire-rated unit delivers dependable security and smooth daily performance in schools, offices, and other institutional settings.
Features
- Grade 1 rim exit device engineered for demanding commercial applications.
- 8804 night latch function with keyed entry through the outside ET trim and P lever.
- Cylinder dogging mechanism for convenient push/pull operation during high-traffic periods.
- Sized for doors ranging from 33 to 36 inches in width.
- LA keyway cylinder supplied keyed different for individual keying.
- Fire-rated (F) construction suitable for labeled door assemblies.
Functional Details
The night latch function provides free egress at all times from the inside, while the outside trim remains locked and requires a key to retract the latch and gain entry. Cylinder dogging uses a key to hold the latch bolt retracted, enabling free passage without unlocking the exit device.
- Cylinder dogging requires a mortise cylinder (not furnished unless specified).
- Dogging retains the latch in the retracted position for push/pull operation.
- Not available on fire-rated devices where dogging is prohibited by code.
Arm Type Details
The ET trim control pairs with a P lever design to provide a comfortable, ADA-compliant grip for keyed access from the exterior. The lever stays rigid when the device is locked and operates the latch only once the cylinder is keyed.
Included Components
This device ships with the rim exit chassis, ET exterior trim with P lever, and LA keyway cylinder keyed different. A compatible mortise cylinder for dogging may be required depending on the application.
Product Specifications
| Manufacturer | Sargent |
|---|---|
| SKU | 16-8804-F-ETP |
| Grade | Grade 1 |
| Function | Night Latch (8804) |
| Trim / Control | ET Control with P Lever |
| Keyway | LA |
| Keying | Keyed Different |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | Fire Rated |
| ANSI Number | ANSI/BHMA A156.3 |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
Technical Specifications
| Device Type | Rim Exit Device |
|---|---|
| Series | 16 Series |
| Function Number | 8804 |
| Door Width Range | 33 to 36 Inches |
| Dogging Type | Cylinder Dogging |
| Latchbolt Type | Deadlocking Latchbolt |
| Fire Rating | Fire Rated (F) |
| Cylinder Type | Mortise Cylinder (for dogging) |
| Keyway Type | LA |
| Mounting | Surface Mounted Rim |
| Handing | Non-Handed |
