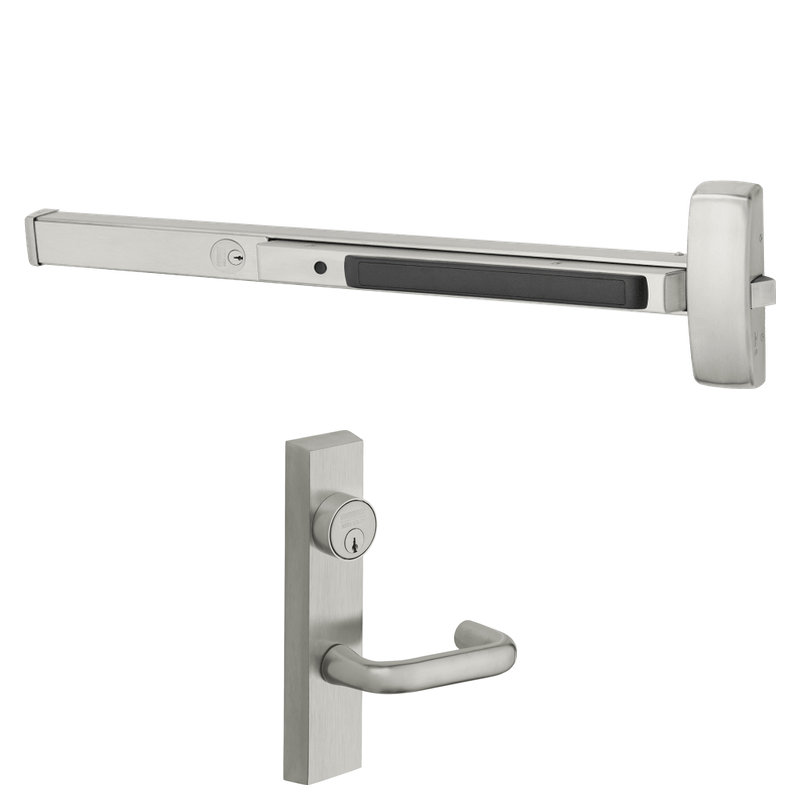

Sargent 16-8804-G-ETJ Rim Exit Device, Night Latch Function, For 43-48 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different

  • SKU: 168804GETJUS32DLHRKD
Sargent 16-8804-G-ETJ Rim Exit Device, Night Latch Function, For 43-48 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US32D-630 Satin Stainless Steel
Sargent 16-8804-G-ETJ Rim Exit Device, Night Latch Function, For 43-48 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US32D-630 Satin Stainless Steel
Sargent 16-8804-G-ETJ Rim Exit Device, Night Latch Function, For 43-48 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US10B-613 Oil Rubbed Bronze
Sargent 16-8804-G-ETJ Rim Exit Device, Night Latch Function, For 43-48 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US10BE-613E Dark Oxidized Bronze
Sargent 16-8804-G-ETJ Rim Exit Device, Night Latch Function, For 43-48 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, BSP Black Suede Powder Coat
Zoomed view
All Sargent Products

Sargent 16-8804-G-ETJ Rim Exit Device, Night Latch Function, For 43-48 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different

  • SKU: 168804GETJUS32DLHRKD
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,714.34/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Sargent 16-8804-G-ETJ Rim Exit Device, Night Latch Function, ET Control, J Lever, 43-48 Inch Door, Cylinder Dogging, Grade 1, LA Keyway, Keyed Different

The Sargent 16-8804-G-ETJ is a Grade 1 rim exit device engineered for high-traffic commercial openings that demand dependable security and smooth operation. Configured with the 8804 night latch function and ET control with the J lever, it allows exterior key access while remaining free for immediate egress from the inside. This model is sized for doors measuring 43 to 48 inches wide and features cylinder dogging, letting authorized staff hold the latch retracted for push-pull convenience during business hours. Supplied with an LA keyway cylinder keyed different, it offers reliable keyed entry and durable, code-compliant performance across schools, offices, healthcare, and institutional facilities.

Features

  • Grade 1 rim exit device built for demanding commercial applications.
  • 8804 night latch function provides key-controlled exterior access with free egress.
  • ET control with the J lever offers a comfortable, durable trim option.
  • Cylinder dogging mechanism retracts and holds the latch for push-pull operation.
  • Sized to fit doors from 43 to 48 inches in width.
  • LA keyway cylinder keyed different for individual keying.

Functional Details

The 8804 night latch function keeps the outside trim locked at all times, with entry controlled by the key. Depressing the push bar always retracts the latch for safe, code-compliant egress. The cylinder dogging feature uses a key to hold the latch retracted, converting the device to push-pull operation during periods of high traffic.

  • Cylinder dogging holds the pushpad in the depressed position for push-pull function.
  • Keyed cylinder dogging provides added security over hex-key dogging.

Arm Type Details

The ETJ trim pairs the ET escutcheon control with the J lever design, providing a sturdy, ergonomic pull for keyed entry while maintaining a clean appearance that complements most commercial door hardware.

Manufacturer Sargent
SKU 16-8804-G-ETJ
Device Type Rim Exit Device
Function Night Latch (8804)
Trim ET Control, J Lever
Grade Grade 1
Origin USA
Unit of Measure Each
UL Listing Type UL/cUL Listed, Panic Hardware
ANSI Number ANSI/BHMA A156.3
BAA Qualified Yes
Limited Warranty Yes
Door Width Range 43 to 48 inches
Device Series 16 Series
Dogging Type Cylinder Dogging
Keyway LA
Keying Keyed Different
Latch Type Deadlatching Rim Latch
Latchbolt Throw 3/4 inch
Mounting Rim Mounted
Door Type Wood or Metal Doors
Handing Non-Handed
Product Cut Sheet

Panic Handing Chart
