Sargent 16-8804-G-ETL Rim Exit Device, Night Latch Function, For 43-48 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different

  • SKU: 168804GETLUS32DLHRKD
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,714.34/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

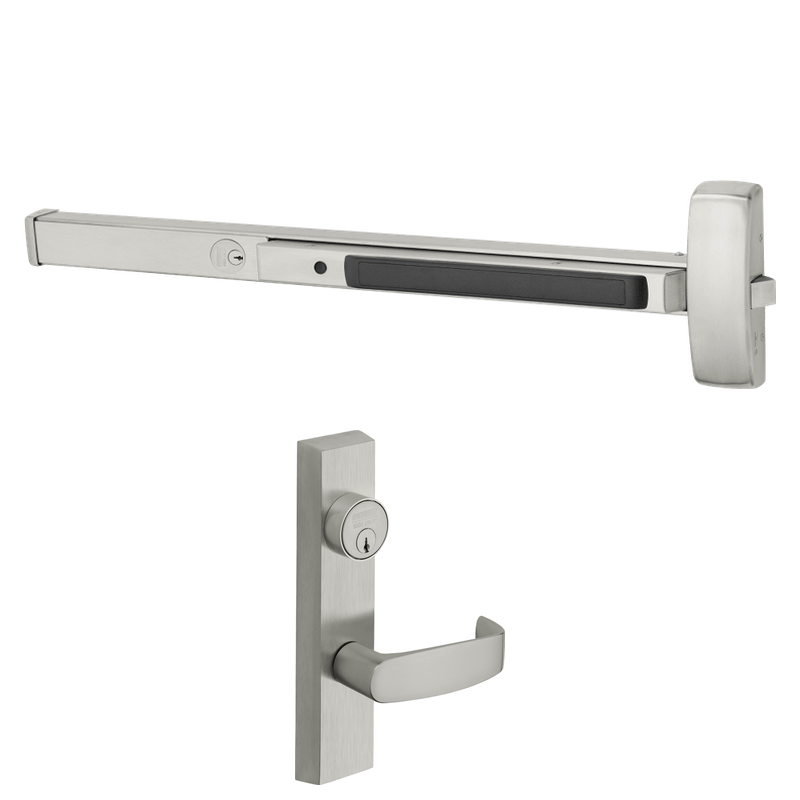

Sargent 16-8804-G-ETL Rim Exit Device, Night Latch Function, ET Control, L Lever, 43-48 Inch Door, Cylinder Dogging, Grade 1, LA Keyway, Keyed Different

The Sargent 16-8804-G-ETL is a Grade 1 rim exit device engineered for high-traffic commercial openings requiring dependable, code-compliant egress. Configured with the Night Latch (8804) function, it keeps the exterior lever locked at all times while the key retracts the latchbolt for controlled entry. This model fits doors measuring 43 to 48 inches wide and features cylinder dogging, allowing the push rail to be held in a depressed position for push-pull operation during peak hours. Equipped with the ET exterior trim and L lever design in an LA keyway keyed different, it delivers secure, reliable access control built to withstand demanding daily use.

Features

  • Night Latch function keeps the outside lever continuously locked with key-controlled latch retraction.
  • Rim-mounted design for straightforward installation on standard door preparations.
  • Cylinder dogging mechanism allows mechanical hold-down of the latch for free passage.
  • Sized to fit doors from 43 to 48 inches in width.
  • ET control with L lever trim for comfortable, ADA-friendly operation.
  • LA keyway keyed different for independent cylinder keying.
  • Grade 1 construction for the highest level of durability and performance.

Functional Details

The 8804 Night Latch function keeps the exterior trim locked while the key retracts the latchbolt, permitting momentary access without dogging the device open. Cylinder dogging lets authorized users mechanically hold the latch retracted for continuous push-pull traffic.

  • Night Latch - Key retracts latch. Pushpad always active.
  • Cylinder dogging holds the pushpad depressed for push/pull function.

Included Components

This device ships with the ET exterior trim featuring the L lever design, an LA keyway cylinder keyed different, and the necessary mounting hardware for standard rim installation.

Manufacturer Sargent
SKU 16-8804-G-ETL
Grade Grade 1
Device Type Rim Exit Device
Function Night Latch (8804)
Trim ET Control, L Lever
Keyway LA
Keying Keyed Different
Dogging Type Cylinder Dogging
Origin USA
Unit of Measure Each
Limited Warranty Yes
Door Width Range 43 to 48 inches
Device Series 16 Series
Mounting Type Rim
Latchbolt Type Deadlatching
Dogging Mechanism Cylinder
Keyway System LA
Function Code 8804
Trim Function Key retracts latch, pushpad always active
Handing Non-handed
ANSI Grade Grade 1
Product Cut Sheet

Panic Handing Chart
