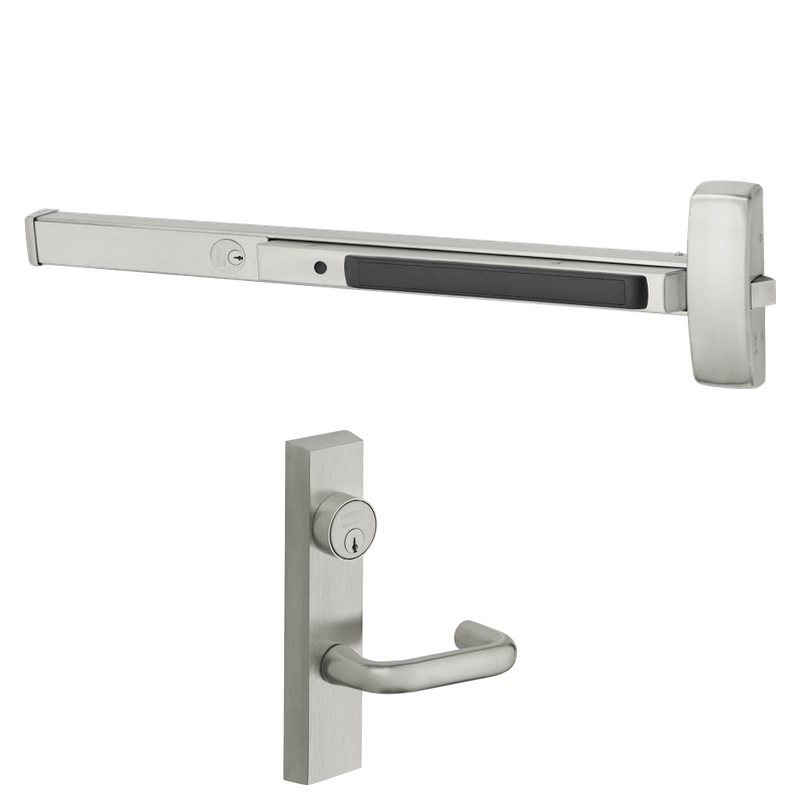

Sargent 16-8804-J-ETJ Rim Exit Device, Night Latch Function, ET Control, J Lever, 37-42 Inch Door, Cylinder Dogging, Grade 1, LA Keyway, Keyed Different

The Sargent 16-8804-J-ETJ is a Grade 1 rim exit device engineered for demanding commercial openings that require secure, code-compliant egress. Configured with the night latch function, it allows free exit at all times while keeping the outside lever locked unless the key is used, making it ideal for building entrances and perimeter doors. This model fits doors measuring 37 to 42 inches wide and features cylinder dogging for mechanical hold-back of the latch. Paired with the ET control trim and J lever, it ships with an LA keyway cylinder keyed different, delivering reliable performance and long-term durability for high-traffic environments.

Features

• Grade 1 rim exit device built for heavy-duty commercial use.
• Night latch function keeps the outside lever locked while permitting free egress at all times.
• Cylinder dogging mechanically retracts and holds the latch for push/pull operation.
• ET control trim with the J lever design for comfortable, accessible operation.
• Sized for doors 37 to 42 inches in width.
• LA keyway cylinder supplied keyed different.

Functional Details

The 8804 night latch function provides secure one-way access: the exit device always allows free egress from the inside, while the outside trim lever remains locked and is only operable with a key. Cylinder dogging uses a keyed cylinder to hold the push bar in the retracted position for periods of free passage.

• Night Latch (NL) – Key retracts latch. Push pad always active for free egress.
• Cylinder Dogging – Key operated cylinder dogging holds the pushpad depressed and the latch retracted for push/pull operation.

Arm Type Details

The ETJ designation refers to the ET control trim paired with the J lever. This escutcheon-style trim provides a durable mounting platform for the lever, which rotates to retract the latch when unlocked by key, offering a balance of security and ease of use on exterior openings.

Included Components

This device includes the rim exit chassis, ET control trim with J lever, and an LA keyway cylinder keyed different for cylinder dogging and night latch operation.
