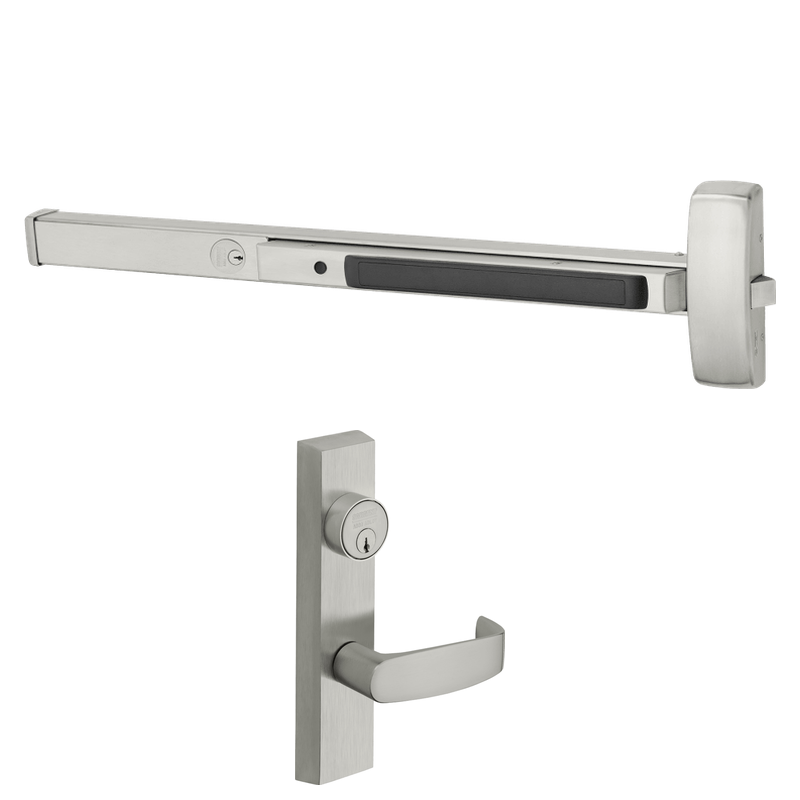

Sargent 16-8804-J-ETL Rim Exit Device, Night Latch Function, ET Control, L Lever, 37-42 Inch Door, Cylinder Dogging, Grade 1, LA Keyway, Keyed Different

The Sargent 16-8804-J-ETL is a Grade 1 rim exit device engineered for busy commercial openings that demand security and reliable daily use. Built for doors measuring 37 to 42 inches wide, it operates in a night latch function paired with ET control and an L lever trim for comfortable, code-compliant egress. Cylinder dogging keeps the pushbar retracted during high-traffic periods, while the LA keyway shipped keyed different lets facility managers assign individual access. As part of Sargent's respected 80 Series, this device combines durable construction with smooth operation, making it a dependable choice for schools, offices, healthcare facilities, and other heavy-use environments.

Features

• Grade 1 rim exit device rated for heavy-duty commercial applications.
• Night latch function allows key-controlled entry from the outside while providing free egress.
• Sized for doors between 37 and 42 inches in width.
• ET control with an L lever provides ergonomic exterior trim operation.
• Cylinder dogging holds the pushbar depressed to allow push-pull operation during peak hours.
• LA keyway supplied keyed different for individualized access control.

Functional Details

The night latch function provides secure entry by requiring a key to retract the latch from the outside, while the interior pushbar always permits immediate free egress. Cylinder dogging uses a keyed cylinder to mechanically hold the device dogged, eliminating latching for convenient traffic flow.

• Cylinder dogging requires a mortise cylinder to dog the device.
• Dogging retains the pushbar in the depressed position for push-pull function.

Included Components

This device ships as a complete rim exit assembly with the ET control L lever exterior trim and provisions for the specified LA keyway cylinder, keyed different.
