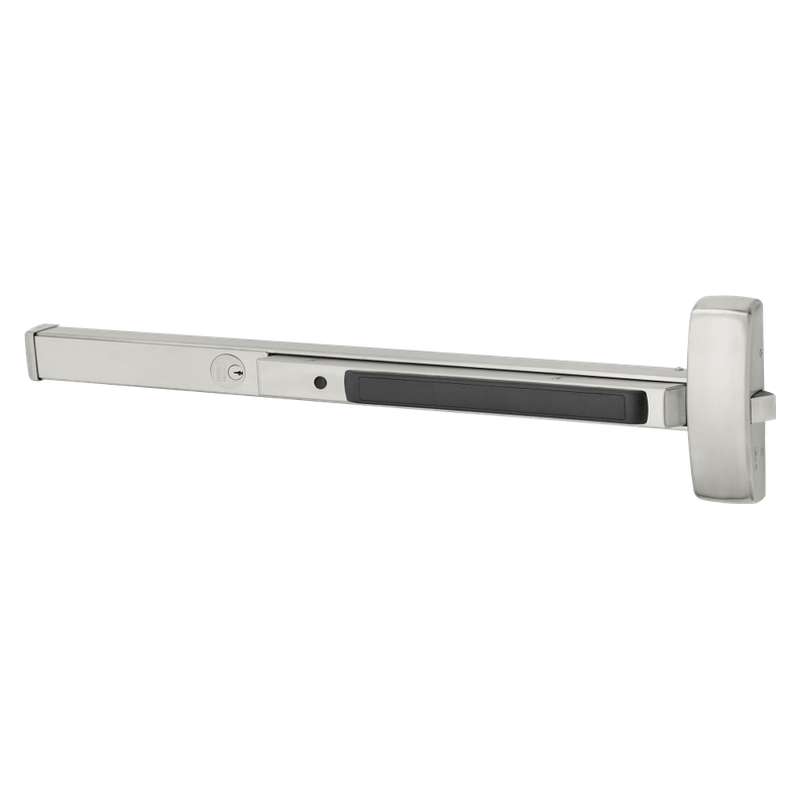

Sargent 16-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, For 33-36 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different

  • SKU: 168810FUS32DKD
Sargent 16-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, For 33-36 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US32D-630 Satin Stainless Steel
Sargent 16-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, For 33-36 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US32D-630 Satin Stainless Steel
Sargent 16-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, For 33-36 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US10B-613 Oil Rubbed Bronze
Sargent 16-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, For 33-36 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US10BE-613E Dark Oxidized Bronze
Sargent 16-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, For 33-36 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, BSP Black Suede Powder Coat
Zoomed view
All Sargent Products

Sargent 16-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, For 33-36 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different

  • SKU: 168810FUS32DKD
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,220.33/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel

Sargent 16-8810-F Rim Exit Device, Multi-Function, Exit Only, Less Trim, 33-36 Inch Door, Cylinder Dogging, Grade 1, Field Reversible, LA Keyway, Keyed Different

The Sargent 16-8810-F Rim Exit Device delivers reliable, code-compliant panic egress for medium to high-traffic commercial openings. Designed as an exit-only (less trim) unit, it mounts to the surface of a single door and fits widths from 33 to 36 inches. This Grade 1 device features cylinder dogging, allowing authorized staff to hold the latch retracted using a key for push/pull operation during business hours. The field-reversible design simplifies installation and inventory, while the LA keyway cylinder ships keyed different for independent keying. Built to withstand demanding daily use, it offers dependable security and smooth, intuitive operation for schools, offices, retail, and institutional buildings.

Features

  • Rim-mounted exit device engineered for single doors measuring 33 to 36 inches in width.
  • Exit-only configuration supplied less trim for secured egress applications.
  • Grade 1 rated construction for heavy-duty commercial performance and longevity.
  • Cylinder dogging mechanism holds the latch retracted for free passage when authorized.
  • Field-reversible design accommodates both left and right hand door installations.
  • LA keyway cylinder provided keyed different for individual control.
  • Multi-function platform suitable for a wide range of commercial openings.

Functional Details

Cylinder dogging uses a key-operated cylinder to mechanically retract and hold the latchbolt, converting the device to push/pull operation during periods of high traffic. Turning the key re-engages the latch for normal secured operation.

  • Cylinder dogging allows the device to be dogged (held down) by use of a key.
  • Standard mortise cylinder required for cylinder dogging function.
Manufacturer Sargent
SKU 16-8810-F
Grade Grade 1
Device Type Rim Exit Device
Function Exit Only, Less Trim
Dogging Type Cylinder Dogging
Keyway LA
Keying Keyed Different
Handing Field Reversible
Door Width Range 33 to 36 Inches
Origin USA
Unit of Measure Each
UL Listing Type UL Listed Panic Hardware
ANSI Number ANSI/BHMA A156.3
BAA Qualified Yes
Limited Warranty Yes
Mounting Type Rim (surface mounted)
Minimum Door Width 33 Inches
Maximum Door Width 36 Inches
Grade Rating Grade 1
Dogging Mechanism Key-Operated Cylinder Dogging
Cylinder Type Mortise Cylinder
Keyway LA
Latchbolt Type Deadlatching Pullman Latch
Handing Reversible (Left or Right Hand)
Trim Configuration Less Trim (Exit Only)
Door Type Single Door
