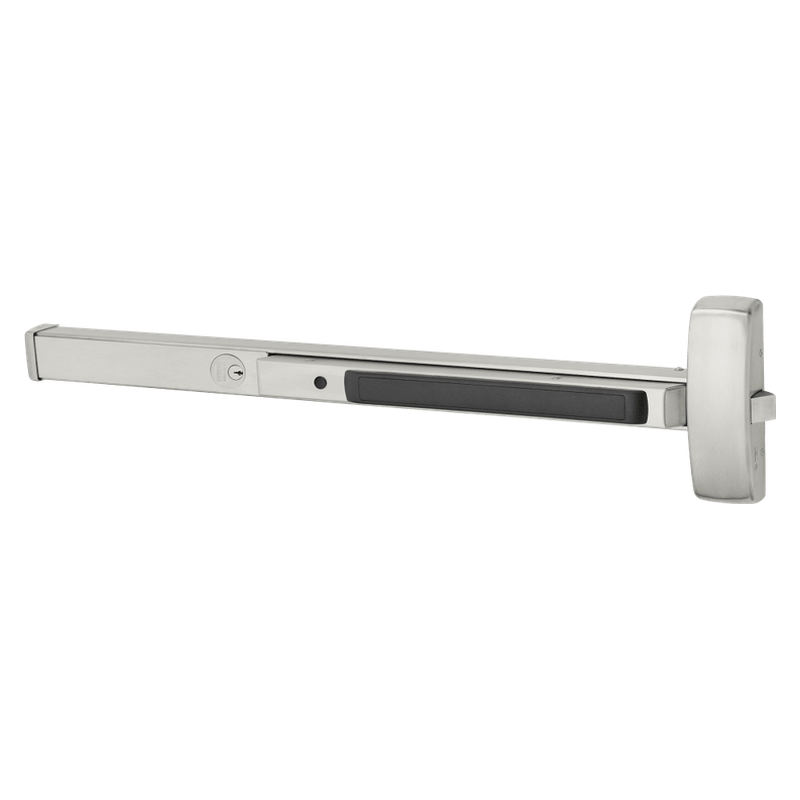

Sargent 16-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, For 43-48 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US32D-630 Satin Stainless Steel
Sargent 16-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, For 43-48 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US32D-630 Satin Stainless Steel
Sargent 16-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, For 43-48 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US10B-613 Oil Rubbed Bronze
Sargent 16-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, For 43-48 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US10BE-613E Dark Oxidized Bronze
Sargent 16-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, For 43-48 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, BSP Black Suede Powder Coat
Zoomed view
All Sargent Products

Sargent 16-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, For 43-48 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different

  • SKU: 168810GUS32DKD
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,220.33/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel

Sargent 16-8810-G Rim Exit Device, Multi-Function, Exit Only, Less Trim, 43-48 Inch Door, Cylinder Dogging, Grade 1, Field Reversible, LA Keyway, Keyed Different

The Sargent 16-8810-G Rim Exit Device delivers dependable, heavy-duty performance for high-traffic commercial openings measuring 43 to 48 inches wide. Built as an exit-only unit with no outside trim, it provides reliable panic egress while the rim-mounted design installs cleanly on standard doors. This model features cylinder dogging, which allows the push bar to be held in the retracted position using a keyed cylinder for added security during business hours. Field reversible and backed by Grade 1 certification, it ships with an LA keyway cylinder keyed different. Ideal for schools, offices, healthcare, and retail facilities that demand durable, code-compliant exit hardware.

Features

  • Rim-mounted exit device designed for doors 43 to 48 inches in width.
  • Exit-only configuration with no outside trim for simple, secure egress.
  • Cylinder dogging allows the latch to be held retracted using a key.
  • Field reversible to accommodate left-hand or right-hand doors.
  • Grade 1 rated for dependable performance in demanding environments.
  • Supplied with LA keyway cylinder, keyed different.

Functional Details

The 8810 multi-function exit-only device uses a key-operated cylinder to dog the push bar down, keeping the latch retracted for push-pull operation during periods of free passage. Turning the key releases the dogging and restores standard latching function.

  • Cylinder dogging holds the pushbar depressed and latch bolt retracted.
  • Exit only device, less outside trim.
Manufacturer Sargent
SKU 16-8810-G
Device Type Rim Exit Device, Exit Only
Function Multi-Function, Cylinder Dogging
Grade Grade 1
Trim Less Trim
Keyway LA
Keying Keyed Different
Handing Field Reversible
Origin Made in USA
Unit of Measure Each
BAA Qualified Yes
Limited Warranty Yes
Door Width Range 43 to 48 inches
Mounting Type Rim
Dogging Type Cylinder Dogging
ANSI/BHMA Grade Grade 1
Device Length Covers 43-48 inch door width
Latchbolt Pullman type
Cylinder Keyway LA
Keying Configuration Keyed Different
Reversibility Field Reversible
Trim Configuration Exit Only (No Outside Trim)
