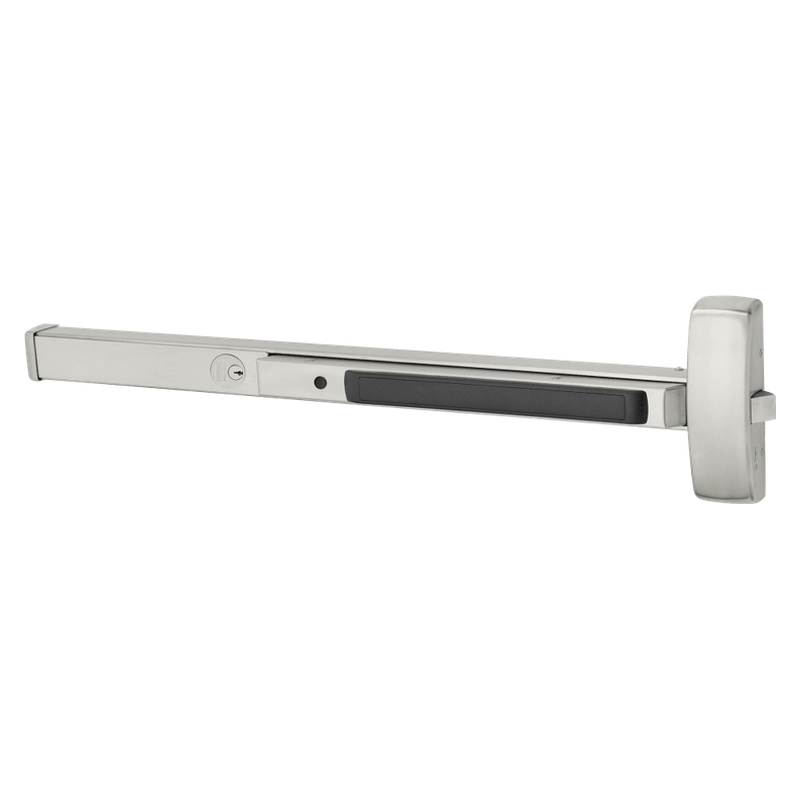

Sargent 16-8810-J Rim Exit Device, Multi-Function, Exit Only, Less Trim, For 37-42 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different

  • SKU: 168810JUS32DKD
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,220.33/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel

Sargent 16-8810-J Rim Exit Device, Multi-Function, Exit Only, Less Trim, 37-42 Inch Door, Cylinder Dogging, Grade 1, Field Reversible, LA Keyway, Keyed Different

The Sargent 16-8810-J Rim Exit Device delivers dependable, code-compliant panic hardware for high-traffic commercial openings measuring 37 to 42 inches wide. Built to Grade 1 standards, this exit-only device operates without outside trim, making it ideal for secured egress applications where re-entry is not required. It features cylinder dogging with an LA keyway cylinder keyed different, allowing authorized staff to hold the latch retracted for push/pull operation during peak hours. The field-reversible design simplifies installation on either door hand, and the rugged rim-mounted construction ensures smooth, reliable performance over years of daily use in schools, offices, and institutional buildings.

Features

  • Rim-mounted exit-only device engineered for doors 37 to 42 inches wide.
  • Grade 1 rated for durability in demanding commercial environments.
  • Cylinder dogging mechanism with LA keyway, keyed different for secure latch hold-back.
  • Less trim configuration for clean exit-only applications.
  • Field reversible to accommodate left- or right-hand door installations.
  • Multi-function design suited to a wide range of egress requirements.

Functional Details

Cylinder dogging uses a keyed cylinder to mechanically hold the pushbar in the depressed position, retracting the latch so the door can be pushed or pulled freely without actuating the panic bar. Turning the key releases the dogging to restore normal latching operation.

  • Cylinder dogging allows the latch bolt to be held retracted using a key.
  • Provides push/pull operation during periods of free access.
Manufacturer Sargent
SKU 16-8810-J
Grade Grade 1
Device Type Rim Exit Device
Function Exit Only, Less Trim
Dogging Type Cylinder Dogging
Keyway LA
Keying Keyed Different
Door Width Range 37 to 42 Inches
Handing Field Reversible
Origin USA
Unit of Measure Each
UL Listing Type UL Listed Panic Hardware
ANSI Number ANSI/BHMA A156.3
Limited Warranty Yes
Series 16-8810
Device Family 80 Series Rim Exit
Door Width Coverage 37 - 42 in.
Mounting Rim (surface mounted)
Latch Type Rim latch bolt
Dogging Mechanism Cylinder
Cylinder Keyway LA
Keying Configuration Keyed Different
Handing Capability Reversible in field
Trim Configuration Less Trim (no outside trim)
ANSI Grade Grade 1
