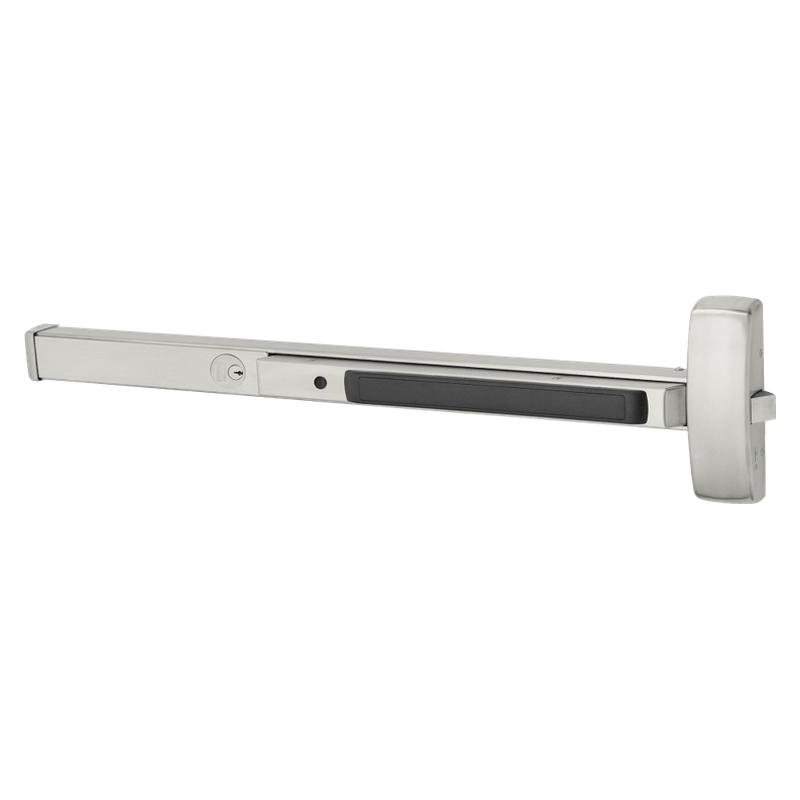

Sargent 16-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, For 33-36 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different

  • SKU: 168888FUS32D
Sargent 16-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, For 33-36 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US32D-630 Satin Stainless Steel
Sargent 16-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, For 33-36 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US32D-630 Satin Stainless Steel
Sargent 16-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, For 33-36 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US10B-613 Oil Rubbed Bronze
Sargent 16-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, For 33-36 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, US10BE-613E Dark Oxidized Bronze
Sargent 16-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, For 33-36 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different, BSP Black Suede Powder Coat
Zoomed view
All Sargent Products

Sargent 16-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, For 33-36 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different

  • SKU: 168888FUS32D
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,220.33/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel

Sargent 16-8888-F Rim Exit Device, Multi-Function, Less Trim Exit Only, 33-36 Inch Door, Cylinder Dogging, Grade 1, Field Reversible, LA Keyway, Keyed Different

The Sargent 16-8888-F Rim Exit Device delivers dependable, code-compliant panic hardware for high-traffic commercial openings. Designed for doors measuring 33 to 36 inches wide, this Grade 1 device provides reliable exit-only operation in a less trim configuration, making it ideal where a clean, pull-free exterior is required. Cylinder dogging allows the latch to be held retracted for push/pull function during business hours, while the LA keyway and keyed different setup offer flexible keying options. Field reversible for left- or right-hand doors, the 16-8888-F combines durable construction with versatile installation, serving as a smart choice for schools, offices, and institutional facilities.

Features

  • Rim-mounted exit device engineered for 33 to 36 inch wide doors.
  • Multi-function design supports exit-only operation in a less trim configuration.
  • Cylinder dogging mechanism holds the latch retracted for free push/pull use.
  • Field reversible to accommodate both left- and right-hand door applications.
  • LA keyway with keyed different cylinders for independent keying.
  • Grade 1 rated construction built for demanding commercial environments.

Functional Details

Cylinder dogging uses a keyed cylinder to mechanically retract and hold the latch bolt, allowing the door to function as a push/pull opening during periods of high traffic and restoring panic latching when disengaged.

  • Cylinder dogging allows the exit device to be dogged with a keyed cylinder.
  • Field reversible for right or left hand doors.
  • Fits door widths from 33" to 36".
Manufacturer Sargent
SKU 16-8888-F
Device Type Rim Exit Device
Function Exit Only, Less Trim
Grade Grade 1
Dogging Type Cylinder Dogging
Keyway LA
Keying Keyed Different
Handing Field Reversible
Origin USA
Unit of Measure Each
BAA Qualified Yes
Limited Warranty Yes
Door Width Range 33" to 36"
ANSI/BHMA Grade Grade 1
Device Series 8800 Series
Mounting Type Rim
Latchbolt Deadlatching latchbolt
Dogging Mechanism Cylinder Dogging
Cylinder Keyway LA
Reversibility Field Reversible
Trim Configuration Less Trim (Exit Only)
Application Commercial / Institutional Doors
Keying Configuration Keyed Different
