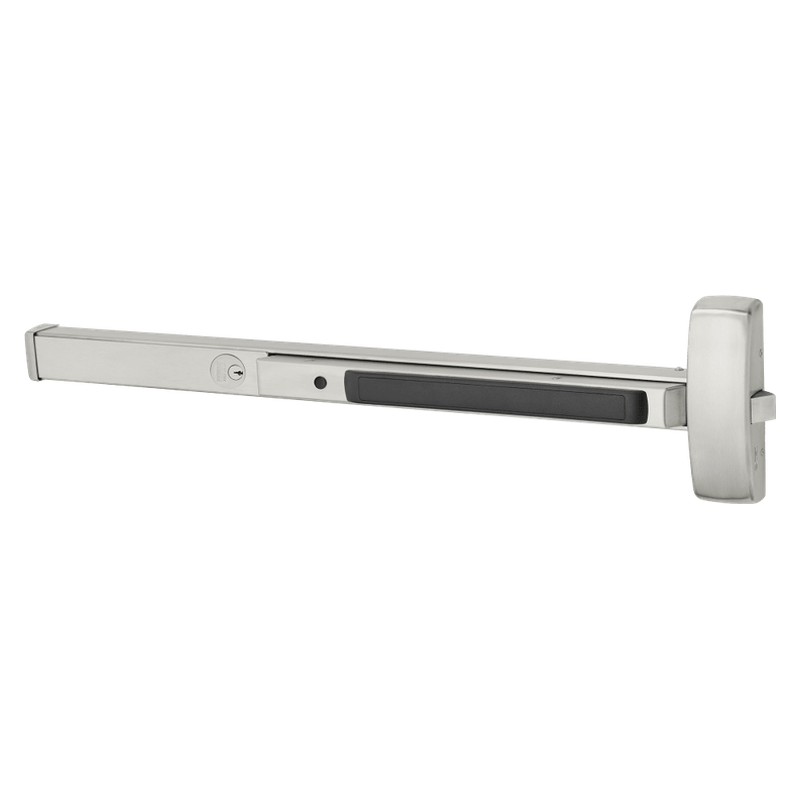

Sargent 16-8888-J Rim Exit Device, Multi-Function, Less Trim Exit Only, For 37-42 Inch Width Door, Cylinder Dogging, LA Keyway, Keyed Different

  • SKU: 168888JUS32D
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,220.33/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel

Sargent 16-8888-J Rim Exit Device, Multi-Function, Less Trim Exit Only, 37-42 Inch Door, Cylinder Dogging, Grade 1, Field Reversible, LA Keyway, Keyed Different

The Sargent 16-8888-J Rim Exit Device delivers dependable, code-compliant egress for high-traffic commercial openings. Built for doors ranging from 37 to 42 inches wide, this Grade 1 rim device features cylinder dogging that allows the latch to be held retracted for push-pull convenience during business hours. The multi-function design ships in a less-trim, exit-only configuration, so it operates purely as a reliable exit mechanism without outside trim. Field reversible for right- or left-hand doors, it includes an LA keyway cylinder keyed different for independent keying. With its heavy-duty construction and touchpad actuation, the 16-8888-J is a practical choice for schools, offices, and institutional facilities.

Features

  • Grade 1 rim exit device rated for heavy commercial use.
  • Fits door widths from 37 to 42 inches.
  • Cylinder dogging mechanically holds the latch retracted for free passage.
  • Less-trim, exit-only configuration for pure egress applications.
  • Field reversible to accommodate left- or right-hand doors.
  • Supplied with an LA keyway cylinder, keyed different.
  • Durable touchpad design for smooth, reliable operation.

Functional Details

Cylinder dogging uses a key-operated cylinder to retract and hold the latchbolt, converting the device to a push-pull function and reducing wear during periods of heavy traffic. Turning the key returns the device to its latching state.

  • Cylinder dogging allows the latch to be held retracted by key for push/pull function.
  • Field reversible for right or left hand doors.
  • Non-handed touchpad for simplified installation.
Manufacturer Sargent
SKU 16-8888-J
Device Type Rim Exit Device
Function Multi-Function, Less Trim Exit Only
Grade Grade 1
Dogging Type Cylinder Dogging
Keyway LA
Keying Keyed Different
Origin USA
Unit of Measure Each
UL Listing Type UL/cUL Listed, Panic Hardware
ANSI Number ANSI/BHMA A156.3
BAA Qualified Yes
Limited Warranty Yes
Door Width Range 37 in. to 42 in.
Device Family 16 Series
Mounting Rim
Handing Field Reversible
Dogging Mechanism Cylinder (key-operated)
Latchbolt Throw 3/4 in.
Cylinder Type Rim Cylinder, LA Keyway
Touchpad Coverage Approximately half door width
ANSI Standard A156.3, Grade 1
Fire Rating Panic rated (non-fire exit only)
